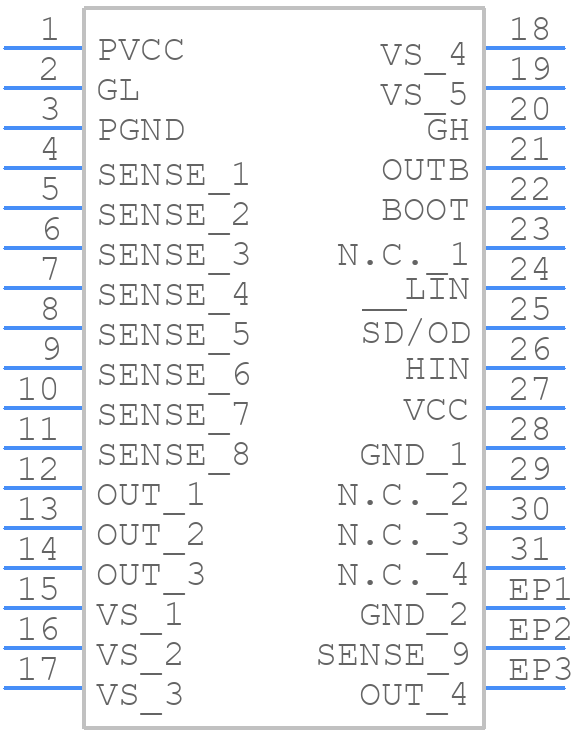

MASTERGAN2TR - STMicroelectronics

MASTERGAN2TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for MASTERGAN2TR to ensure optimal performance?
  STMicroelectronics provides a recommended PCB layout in the MASTERGAN2TR application note (AN5333) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
• How do I select the right transformer for use with MASTERGAN2TR?
  The selection of the transformer depends on the specific application requirements, such as output power, voltage, and frequency. STMicroelectronics provides a transformer selection guide in the MASTERGAN2TR application note (AN5333) which includes a list of recommended transformers and their characteristics.
• What are the thermal management considerations for MASTERGAN2TR?
  MASTERGAN2TR has a high power density and requires proper thermal management to ensure reliable operation. The device has an exposed pad for thermal connection to the PCB, and STMicroelectronics recommends using a thermal interface material (TIM) and a heat sink to dissipate heat. The application note (AN5333) provides guidelines for thermal management and heat sink selection.
• How do I implement overcurrent protection with MASTERGAN2TR?
  MASTERGAN2TR has a built-in overcurrent protection (OCP) feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The OCP threshold can be adjusted by selecting the appropriate resistor value. STMicroelectronics provides a detailed description of the OCP feature and its implementation in the MASTERGAN2TR datasheet and application note (AN5333).
• What are the EMI considerations for MASTERGAN2TR?
  MASTERGAN2TR is a high-frequency device that can generate electromagnetic interference (EMI). To minimize EMI, STMicroelectronics recommends using a shielded transformer, keeping the PCB layout compact, and using EMI filters or common-mode chokes. The application note (AN5333) provides guidelines for EMI reduction and compliance with regulatory standards.
