MASTERGAN4 - STMicroelectronics

Description: High power density 600V half-bridge driver with two enhancement mode GaN HEMTs

Download MASTERGAN4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

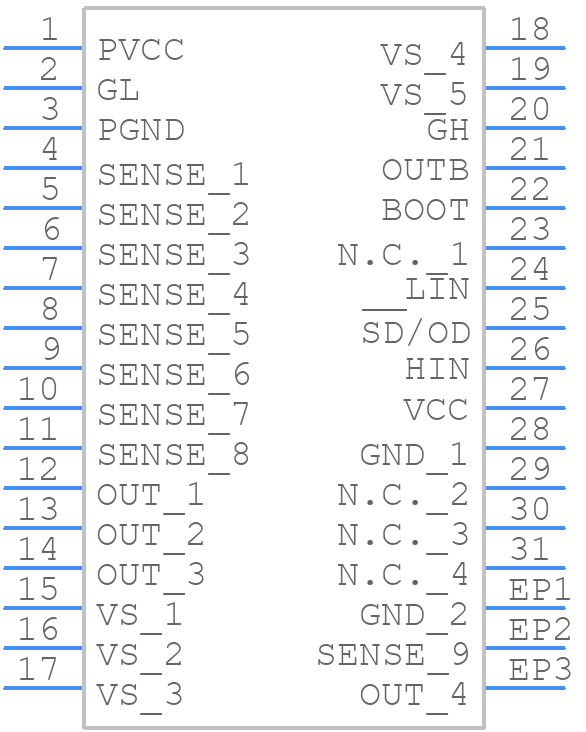

MASTERGAN4 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MASTERGAN4 - STMicroelectronics PCB footprint - Other - Other - MASTERGAN4-5
click to zoom
3D Models
MASTERGAN4 - STMicroelectronics - 3D model - Other - MASTERGAN4-5
click to zoom

MASTERGAN4 Details

  • Manufacturer Part Number:

    MASTERGAN4

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-31

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XQCC-N31

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    6.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC31,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    9.5 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    8.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    9 mm

MASTERGAN4 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the MASTERGAN4 application note (AN5333) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MASTERGAN4 can be configured for different gate driver topologies such as half-bridge, full-bridge, and three-phase configurations using external resistors and capacitors. The configuration depends on the specific application requirements and can be found in the MASTERGAN4 application note (AN5333) and the STMicroelectronics gate driver selection guide.
  • The maximum operating frequency of the MASTERGAN4 is 500 kHz, but it can be extended up to 1 MHz with proper PCB layout and component selection. However, the actual operating frequency depends on the specific application requirements and the performance of the external components.
  • The MASTERGAN4 requires a stable bias voltage (VCC) between 3.3 V and 15 V, and a decoupling capacitor (CDEC) between VCC and GND to ensure optimal performance. The bias voltage and decoupling capacitor values depend on the specific application requirements and can be found in the MASTERGAN4 datasheet and application note (AN5333).
  • The VREF pin in the MASTERGAN4 is used to set the internal voltage reference for the device. It is recommended to connect VREF to a stable voltage source (e.g., 2.5 V) through a resistor divider network to ensure accurate voltage regulation and optimal performance.
