MASTERGAN4LTR - STMicroelectronics

Description: 600 V half-bridge enhancement mode GaN HEMT with high voltage driver

Download MASTERGAN4LTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

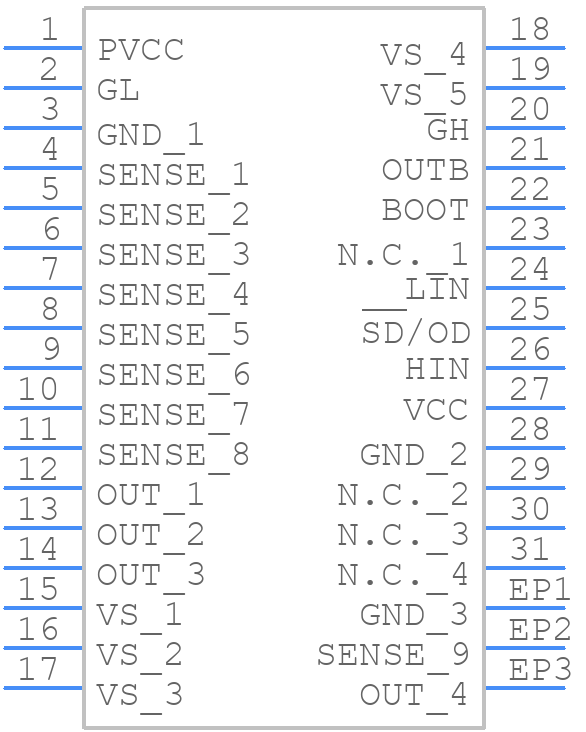

MASTERGAN4LTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MASTERGAN4LTR - STMicroelectronics PCB footprint - Other - Other - MASTERGAN4LTR-3
click to zoom
3D Models
MASTERGAN4LTR - STMicroelectronics - 3D model - Other - MASTERGAN4LTR-3
click to zoom

MASTERGAN4LTR Details

  • Manufacturer Part Number:

    MASTERGAN4LTR

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-31

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED GAN FET DRIVER

  • JESD-30 Code:

    S-XQCC-N31

  • Length:

    9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    12 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC31,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    9.5 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    8.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

MASTERGAN4LTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MASTERGAN4LTR has a programmable input voltage range, which can be configured using the VSENSE pin. The datasheet provides a table with recommended resistor values for different input voltage ranges. Additionally, STMicroelectronics provides a configuration tool to help designers calculate the required resistor values.
  • The maximum power dissipation of the MASTERGAN4LTR is dependent on the operating conditions and the thermal management of the PCB. The datasheet provides a power dissipation calculation formula, and STMicroelectronics recommends using a thermal pad and a heat sink to ensure the device operates within the recommended temperature range.
  • The MASTERGAN4LTR is rated for operation up to 150°C, but the device's performance and reliability may be affected at high temperatures. STMicroelectronics recommends derating the device's power dissipation and ensuring proper thermal management to ensure reliable operation in high-temperature environments.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5323, which includes a checklist of common issues and their possible causes. Additionally, designers can use the device's built-in diagnostic features, such as the fault detection pin, to identify and debug issues.
