MASTERGAN4TR - STMicroelectronics

Description: High power density 600V half-bridge driver with two enhancement mode GaN HEMTs

Download MASTERGAN4TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

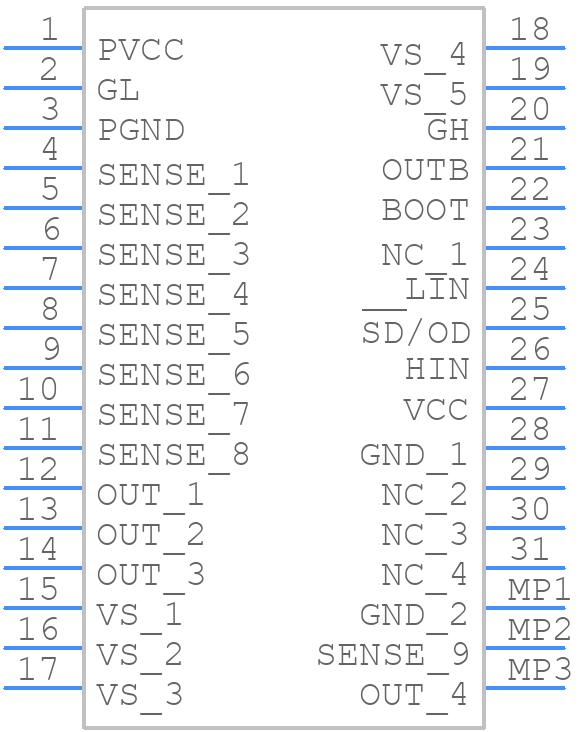

MASTERGAN4TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MASTERGAN4TR - STMicroelectronics PCB footprint - Other - Other - MASTERGAN4TR-3
click to zoom
3D Models
MASTERGAN4TR - STMicroelectronics - 3D model - Other - MASTERGAN4TR-3
click to zoom

MASTERGAN4TR Details

  • Manufacturer Part Number:

    MASTERGAN4TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-31

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XQCC-N31

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    6.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC31,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    9.5 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    8.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    9 mm

MASTERGAN4TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the MASTERGAN4TR application note (AN5333) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the transformer depends on the specific application requirements, such as output power, voltage, and frequency. STMicroelectronics provides a transformer selection guide in the MASTERGAN4TR application note (AN5333) which includes a list of recommended transformers and their characteristics.
  • The maximum operating temperature range for MASTERGAN4TR is -40°C to 150°C, as specified in the datasheet. However, the device can operate up to 175°C for a short period of time (less than 10 minutes) during startup or fault conditions.
  • MASTERGAN4TR has a built-in overcurrent protection feature that can be enabled by connecting a sense resistor to the OCP pin. The OCP threshold can be set by selecting the appropriate sense resistor value. Additionally, an external overcurrent protection circuit can be implemented using a dedicated IC or a microcontroller.
  • Yes, MASTERGAN4TR can be used in a redundant configuration to achieve high availability and fault tolerance. This can be achieved by connecting multiple MASTERGAN4TR devices in parallel and using a redundancy controller to switch between them in case of a failure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MASTERGAN4TR Overview

Use the download button to access the MASTERGAN4TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASTE, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
