MASTERGAN5 - STMicroelectronics

Description: High power density 600 V half-bridge driver with two enhancement mode GaN power HEMTs

Download MASTERGAN5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

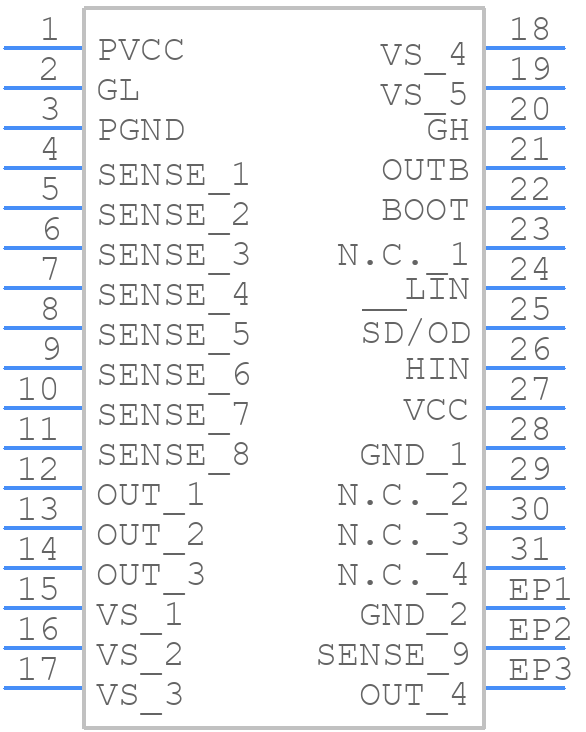

MASTERGAN5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MASTERGAN5 - STMicroelectronics PCB footprint - Other - Other - QFN 9 x 9 x 1 mm_1
click to zoom
3D Models
MASTERGAN5 - STMicroelectronics - 3D model - Other - QFN 9 x 9 x 1 mm_1
click to zoom

MASTERGAN5 Details

  • Manufacturer Part Number:

    MASTERGAN5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-31

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED GAN FET DRIVER

  • JESD-30 Code:

    S-XQCC-N31

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC31,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    9.5 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    8.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    9 mm

MASTERGAN5 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the MASTERGAN5 application note (AN5333) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the transformer depends on the specific application requirements, such as output power, voltage, and current. STMicroelectronics provides a transformer selection guide in the MASTERGAN5 application note (AN5333) which helps engineers to choose the right transformer for their design.
  • MASTERGAN5 has a high power density, and thermal management is critical to ensure reliable operation. Engineers should consider using a heat sink, thermal interface material, and optimizing the PCB layout to minimize thermal resistance. STMicroelectronics provides thermal management guidelines in the MASTERGAN5 datasheet and application note (AN5333).
  • MASTERGAN5 has a built-in overcurrent protection feature that can be enabled through the OCP pin. Engineers can implement overcurrent protection by connecting a resistor and capacitor to the OCP pin, and setting the overcurrent threshold according to the application requirements. The MASTERGAN5 datasheet provides more information on how to implement overcurrent protection.
  • MASTERGAN5 is a high-frequency device that can generate electromagnetic interference (EMI). Engineers should consider using EMI filters, shielding, and optimizing the PCB layout to minimize EMI. STMicroelectronics provides EMI guidelines in the MASTERGAN5 application note (AN5333) to help engineers design EMI-compliant systems.
