- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX-8C-0
- Part Number MAX-8C-0
- Manufacturer u-blox
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MAX-8C-0-4
- Released Date Oct 23, 2020
- Last Modified Date Jan 17, 2025 11:15 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAX-8C-0 Details
-
Manufacturer Part Number:
MAX-8C-0
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LCC-18
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-XDMA-N18
-
Length:
10.1 mm
-
Moisture Sensitivity Level:
4
MAX-8C-0 Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to first apply power to the module's VCC pin, followed by the enable pin (EN). This ensures that the module is properly initialized and configured.
-
The MAX-8C-0 module can be configured using the u-blox UBX protocol, which allows you to select the desired GNSS system(s) and configure other settings such as satellite systems, signal frequencies, and more.
-
The maximum update rate of the MAX-8C-0 module is 18 Hz. You can configure the update rate using the UBX-CFG-RATE command, which allows you to set the measurement rate, navigation rate, and time pulse rate.
-
To troubleshoot issues with the MAX-8C-0 module, you can use the u-blox u-center software to analyze the module's output and diagnose problems. You can also check the module's configuration, antenna quality, and environmental factors that may be affecting performance.
-
While it is possible to use the MAX-8C-0 module with a non-standard antenna, it is not recommended as it may affect the module's performance and accuracy. The module is optimized for use with a standard GNSS antenna, and using a non-standard antenna may require additional calibration and testing.
Trust Checks
Expert Contribution
System Verified
Community Approved
MAX-8C-0 Overview

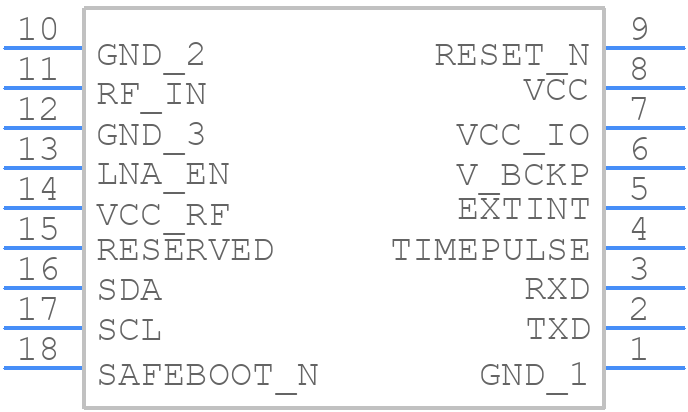

Use the download button to access the MAX-8C-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX-8,
or try a keyword search, such as Other Telecom ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
