MAX11127ATI+ - Analog Devices

Description: 1Msps, Low-Power, Serial 12-/10-/8-Bit, 4-/8-/16-Channel ADCs 28 TQFN-EP

Download MAX11127ATI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

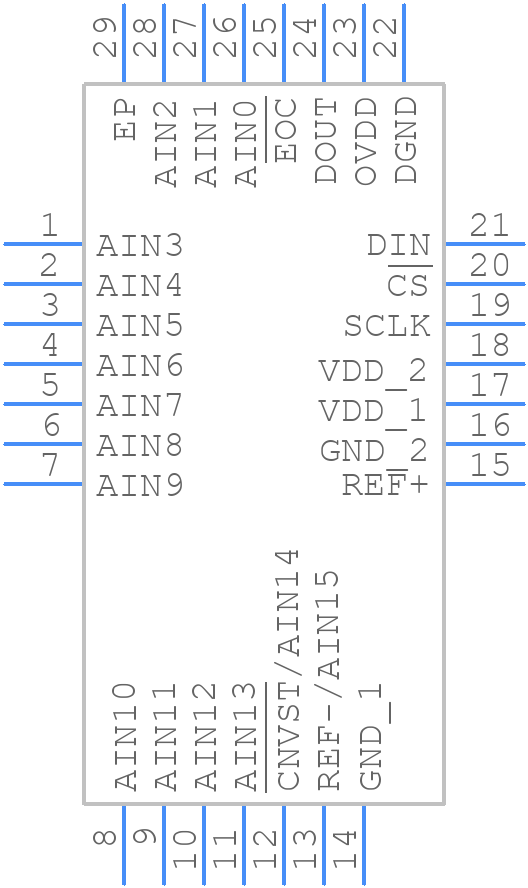

MAX11127ATI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11127ATI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855 +3
click to zoom
3D Models
MAX11127ATI+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855 +3
click to zoom

MAX11127ATI+ Details

  • Manufacturer Part Number:

    MAX11127ATI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2012-01-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.65 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0390625%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX11127ATI+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11127ATI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11127ATI+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate of the MAX11127ATI+ is 1Msps (million samples per second), but this can be affected by the clock frequency, the analog input bandwidth, and the digital interface used. It's recommended to consult the datasheet and application notes for specific guidance on achieving the maximum sampling rate.
  • The MAX11127ATI+ does not require calibration, as it has an internal calibration circuit that sets the gain and offset of the ADC. However, it's recommended to perform a system-level calibration to ensure that the entire signal chain is optimized for the specific application.
  • The power consumption of the MAX11127ATI+ depends on the operating mode, clock frequency, and supply voltage. In normal operation, the device consumes around 15mW, but this can be reduced to around 1mW in shutdown mode. Consult the datasheet for specific power consumption values.
