MAX11128ATI+ - Analog Devices

Description: Analog to Digital Converters - ADC 12-/10-/8-Bit, 4-/8-/16-Channel, 1Msps SAR ADCs with External Reference,1MHz Full Linear Bandwidth, and

Download MAX11128ATI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

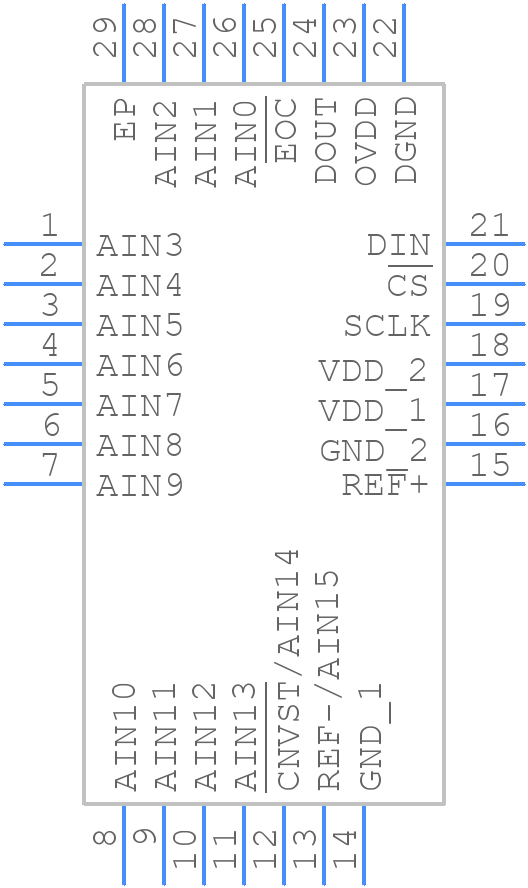

MAX11128ATI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11128ATI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+3
click to zoom
3D Models
MAX11128ATI+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855+3
click to zoom

MAX11128ATI+ Details

  • Manufacturer Part Number:

    MAX11128ATI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2012-01-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.65 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.024414063%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX11128ATI+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX11128ATI+ can be found in the MAX11128 Evaluation Kit User Guide (UG11128) and the MAX11128 Layout Guidelines document, both available on the Analog Devices website. These resources provide detailed guidance on PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
  • The MAX11128ATI+ has a programmable gain amplifier (PGA) that can be configured for different gain settings using the SPI interface. The gain settings can be programmed using the GAIN[2:0] bits in the CONFIG register (Address 0x01). The gain settings range from 1V/V to 128V/V in powers of 2. Refer to the MAX11128 datasheet and the MAX11128 Programming Guide for more information.
  • The maximum sampling rate of the MAX11128ATI+ is 1.5Msps (megasamples per second) for a single channel, and 750ksps for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, filter settings, and other factors. Refer to the MAX11128 datasheet and the MAX11128 Evaluation Kit User Guide for more information.
  • The MAX11128ATI+ has an internal calibration mechanism that can be initiated using the CALIBRATE command (Address 0x10). The calibration process adjusts the ADC offset and gain to ensure optimal performance. Refer to the MAX11128 datasheet and the MAX11128 Programming Guide for more information on the calibration process and recommended calibration procedures.
  • The power consumption of the MAX11128ATI+ depends on the operating mode, sampling rate, and other factors. In normal operation, the typical power consumption is around 12.5mW at 1.5Msps. In shutdown mode, the power consumption is typically around 1μW. Refer to the MAX11128 datasheet for more information on power consumption and power management.
