MAX11142ATI+ - Analog Devices

Description: 500ksps, Low-Power, Serial 12-/10-/8-Bit, 4-/8-/16-Channel ADCs

Download MAX11142ATI+ Model

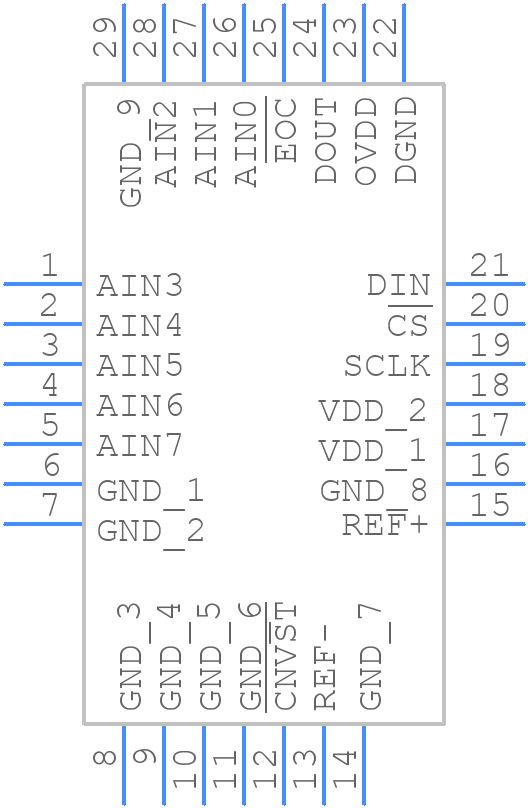

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX11142ATI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+3
click to zoom
3D Models
MAX11142ATI+ - Analog Devices  - 3D model - Quad Flat No-Lead - T2855+3
click to zoom

MAX11142ATI+ Details

  • Manufacturer Part Number:

    MAX11142ATI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2012-04-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.65 V

  • Analog Input Voltage-Min:

    -1 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0586%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX11142ATI+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11142ATI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11142ATI+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate that can be achieved with the MAX11142ATI+ is 1Msps (million samples per second) in the fast mode, and 500ksps (thousand samples per second) in the normal mode. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
  • The MAX11142ATI+ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Additionally, external calibration can be performed using an external reference voltage and an external calibration circuit.
  • The power consumption of the MAX11142ATI+ depends on the operating mode, the sampling rate, and the supply voltage. In the fast mode, the typical power consumption is around 12mW at 3.3V supply voltage, and in the normal mode, it's around 6mW at 3.3V supply voltage. However, the actual power consumption may vary depending on the system's requirements and the device's configuration.
