MAX11160EUB+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX11160EUB+ - ADC, 16BIT, 500KSPS, UMAX-10

Download MAX11160EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

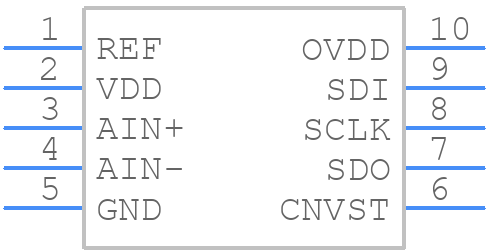

Symbol
MAX11160EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11160EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0061 10 Pin uMax
click to zoom
3D Models
MAX11160EUB+ - Analog Devices - 3D model - Small Outline Packages - 21-0061 10 Pin uMax
click to zoom

MAX11160EUB+ Details

  • Manufacturer Part Number:

    MAX11160EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    uMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2015-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.004 V

  • Conversion Time-Max:

    1.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00267%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.945 mm

MAX11160EUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11160EUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane to minimize noise coupling.
  • The internal reference voltage of the MAX11160EUB+ can be configured by connecting the REF pin to a voltage source or to the internal reference voltage (VREF) through a resistor divider network. The recommended configuration is to connect the REF pin to VREF through a 1kΩ resistor and a 2.2nF capacitor to filter out noise.
  • The maximum sampling rate of the MAX11160EUB+ depends on the operating mode and the clock frequency. In normal mode, the maximum sampling rate is 1Msps, while in turbo mode, it can reach up to 2Msps. However, the actual sampling rate may be limited by the system's clock frequency and the device's settling time.
  • The power-up and power-down sequencing of the MAX11160EUB+ is critical to ensure proper operation. The recommended sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. During power-down, the sequence should be reversed.
  • The recommended clock frequency for the MAX11160EUB+ is between 1MHz and 50MHz. However, the actual clock frequency may depend on the system's requirements and the device's operating mode. A higher clock frequency can improve the device's performance, but it may also increase power consumption.
