MAX11162EUB+ - Analog Devices

Description: 16-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin µMAX

Download MAX11162EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

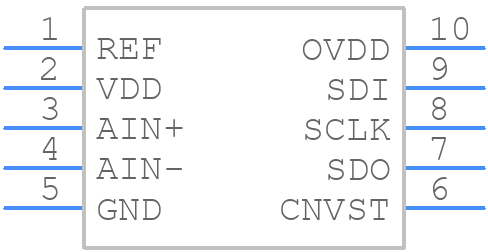

MAX11162EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11162EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10 +2
click to zoom
3D Models
MAX11162EUB+ - Analog Devices - 3D model - Small Outline Packages - U10 +2
click to zoom

MAX11162EUB+ Details

  • Manufacturer Part Number:

    MAX11162EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2013-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    1.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    2.945 mm

  • Linearity Error-Max (EL):

    0.0019073%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.945 mm

MAX11162EUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11162EUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11162EUB+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate that can be achieved with the MAX11162EUB+ is 1Msps (million samples per second) in the fast mode, and 500ksps (thousand samples per second) in the normal mode. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
  • The MAX11162EUB+ has an internal calibration circuit that calibrates the device during power-up. However, if additional calibration is required, it can be done by applying a known input voltage and adjusting the offset and gain registers to achieve the desired output code. The calibration process may need to be repeated at different temperatures and operating conditions.
  • The power consumption of the MAX11162EUB+ varies depending on the operating mode. In the shutdown mode, the power consumption is typically around 1μA. In the standby mode, the power consumption is around 100μA. In the normal operating mode, the power consumption is around 10mA, and in the fast mode, the power consumption is around 20mA.
