MAX11165ETC+T - Analog Devices

Description: 16-Bit, 250ksps, 0 to 5V SAR ADC with Internal Reference, 1 Input 1 SAR 12-TDFN (3x3)

Download MAX11165ETC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

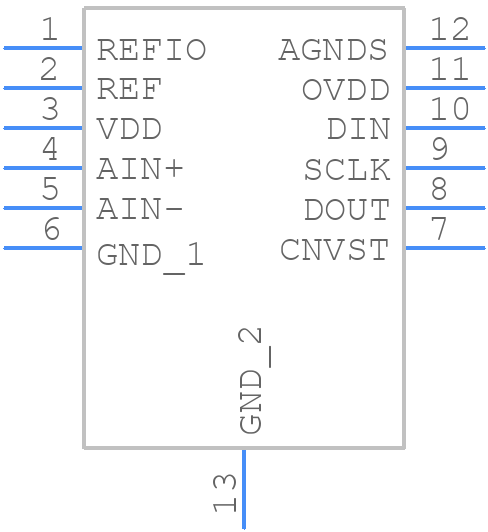

Symbol
MAX11165ETC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11165ETC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12 TDFN-EP
click to zoom
3D Models
MAX11165ETC+T - Analog Devices - 3D model - Small Outline No-lead - 12 TDFN-EP
click to zoom

MAX11165ETC+T Details

  • Manufacturer Part Number:

    MAX11165ETC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2013-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.188 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11165ETC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11165ETC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor, and the temperature sensor should be thermally connected to the device being measured.
  • The maximum sampling rate of the MAX11165ETC+T is 1.1Msps. The sampling rate affects the power consumption, with higher sampling rates resulting in higher power consumption. However, the device has a power-down mode that can be used to reduce power consumption when not in use.
  • The MAX11165ETC+T can be interfaced with a microcontroller using the SPI or I2C interface. The device supports standard SPI and I2C communication protocols, and the interface can be selected using the CS/SEL pin.
  • The operating temperature range of the MAX11165ETC+T is -40°C to +125°C. The device's performance may be affected by temperature, with increased temperature resulting in increased offset voltage and decreased accuracy. However, the device is designed to operate within specifications across the entire temperature range.
