MAX11169EUB+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX11169EUB+ - Analogue to Digital Converter, 16 bit, 250 kSPS, Pseudo Differential, SPI, Single, 4.75 V

Download MAX11169EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

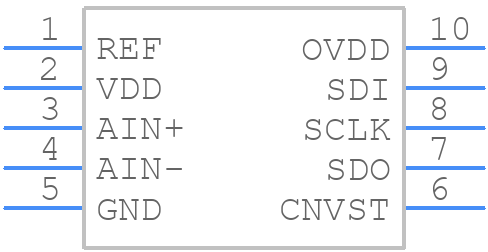

Symbol
MAX11169EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11169EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX-1
click to zoom
3D Models
MAX11169EUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX-1
click to zoom

MAX11169EUB+ Details

  • Manufacturer Part Number:

    MAX11169EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    3 X 5 MM, ROHS COMPLIANT, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2014-06-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.005 V

  • Analog Input Voltage-Min:

    4.995 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0027%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11169EUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11169EUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11169EUB+ in noisy environments, use proper shielding, grounding, and decoupling techniques. Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise, and ensure that the device is operated within its specified temperature range.
  • The maximum sampling rate that can be achieved with the MAX11169EUB+ is 1Msps (million samples per second) in the fast mode, and 500ksps (thousand samples per second) in the normal mode. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
  • The MAX11169EUB+ does not require calibration. It has an internal calibration circuit that ensures accurate conversions. However, it's recommended to perform a system-level calibration to account for any system-specific errors or offsets.
  • The power consumption of the MAX11169EUB+ depends on the operating mode and the clock frequency. In the fast mode, the typical power consumption is around 12.5mW at 1Msps, and in the normal mode, it's around 6.5mW at 500ksps. The power consumption can be further reduced by using the device's power-down mode.
