MAX1119EKA+T - Analog Devices

Description: Single-Supply, Low-Power, 2-Channel, Serial 8 Bit Analog to Digital Converter 2 Input 1 SAR SOT-23-8

Download MAX1119EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

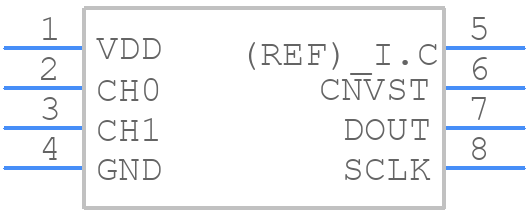

MAX1119EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1119EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOT-23, 8L
click to zoom
3D Models
MAX1119EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - SOT-23, 8L
click to zoom

MAX1119EKA+T Details

  • Manufacturer Part Number:

    MAX1119EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP,

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2001-02-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    4.096 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.19 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX1119EKA+T Frequently Asked Questions (FAQs)

  • The MAX1119EKA+T is a high-speed device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX1119EKA+T is a high-speed device that can generate high-frequency noise. To handle this noise, it is recommended to use a low-pass filter or a ferrite bead in series with the power supply to the device. Additionally, it is recommended to use a decoupling capacitor between the power supply and the device to filter out high-frequency noise.
  • The maximum clock frequency that can be used with the MAX1119EKA+T is 10MHz. However, the actual clock frequency that can be used may be limited by the specific application and the quality of the clock signal. It is recommended to consult the datasheet and application notes for more information on clock frequency limitations.
  • The MAX1119EKA+T has a programmable gain amplifier that can be set to different gain settings using the GAIN pin. The GAIN pin is a 3-state input that can be connected to VCC, GND, or left floating to select different gain settings. The specific gain settings and corresponding GAIN pin connections are provided in the datasheet.
  • The MAX1119EKA+T has a power-down mode that can be used to reduce power consumption when the device is not in use. The power-down mode is enabled by pulling the SHDN pin low. In power-down mode, the device consumes less than 1µA of current. It is recommended to consult the datasheet for more information on power-down mode and its usage.
