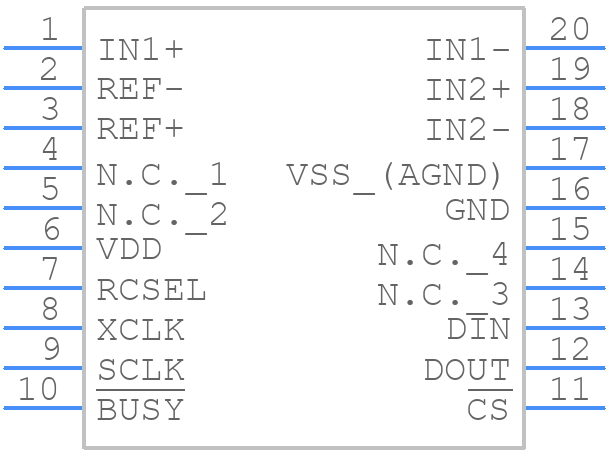

MAX111BCAP+T - Analog Devices

MAX111BCAP+T Details

• Manufacturer Part Number:

  MAX111BCAP+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  20-SSOP-5.3_MM

• Package Description:

  SSOP,

• Pin Count:

  20

• Manufacturer Package Code:

  20-SSOP-5.3_MM

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  1999-06-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  1.5 V

• Conversion Time-Max:

  20000 µs

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  7.2 mm

• Linearity Error-Max (EL):

  0.18%

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -5 V

• Number of Analog In Channels:

  2

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  1.25 MHz

• Seated Height-Max:

  1.99 mm

• Supply Current-Max:

  1.2 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.29 mm
