MAX11206EEE+ - Analog Devices

Description: Analog to Digital Converters - ADC 20-Bit Delta-Sigma

Download MAX11206EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

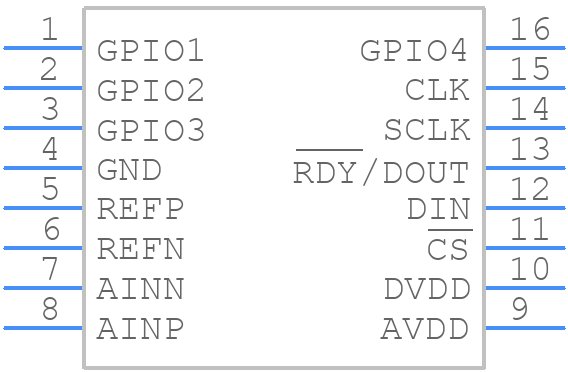

Symbol
MAX11206EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11206EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_O
click to zoom
3D Models
MAX11206EEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_O
click to zoom

MAX11206EEE+ Details

  • Manufacturer Part Number:

    MAX11206EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.246 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.235 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX11206EEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11206EEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11206EEE+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate of the MAX11206EEE+ depends on the specific configuration and the clock frequency. However, the device can achieve sampling rates up to 1.5Msps in high-speed mode and up to 100ksps in low-power mode.
  • The MAX11206EEE+ has an internal calibration mechanism that can be initiated through the SPI interface. The device can be calibrated for offset, gain, and linearity. It's recommended to perform calibration at power-up and after any changes to the analog input or reference voltage.
  • The power consumption of the MAX11206EEE+ varies depending on the mode of operation. In high-speed mode, the device consumes around 12mW, while in low-power mode, it consumes around 2.5mW. In shutdown mode, the device consumes less than 1μW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX11206EEE+ Overview

Use the download button to access the MAX11206EEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX11, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
