MAX11209EEE+ - Analog Devices

Description: 18-Bit, Ultra-Low Power, Delta-Sigma ADCs with Programmable Gain and GPIO

Download MAX11209EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

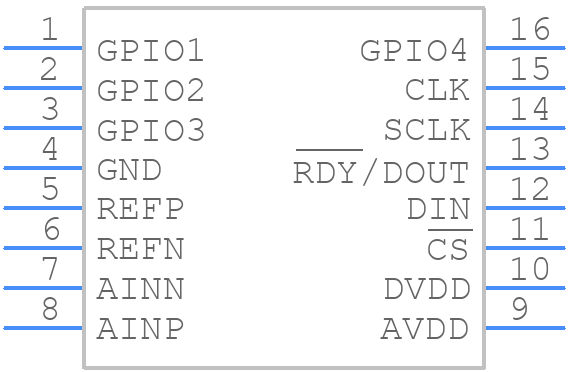

Symbol
MAX11209EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11209EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0055
click to zoom
3D Models
MAX11209EEE+ - Analog Devices - 3D model - Small Outline Packages - 21-0055
click to zoom

MAX11209EEE+ Details

  • Manufacturer Part Number:

    MAX11209EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.5 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.246 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX11209EEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11209EEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11209EEE+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate of the MAX11209EEE+ is 1.5Msps (megasamples per second) in the high-speed mode, and 500ksps in the low-power mode. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
  • The MAX11209EEE+ outputs 16-bit or 18-bit digital data, depending on the mode. The data can be accessed through the SPI or I2C interface. The user needs to configure the interface, set the data format, and handle the data transfer using a microcontroller or a dedicated interface chip.
  • The power consumption of the MAX11209EEE+ depends on the operating mode, sampling rate, and supply voltage. In the high-speed mode, the typical power consumption is around 25mW, while in the low-power mode, it's around 5mW. The power consumption can be further reduced by using the shutdown mode or the low-power standby mode.
