MAX11216EUG+ - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit, 13mW, 127dB SNR, 64ksps Delta Sigma ADC with Integrated PGA

Download MAX11216EUG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

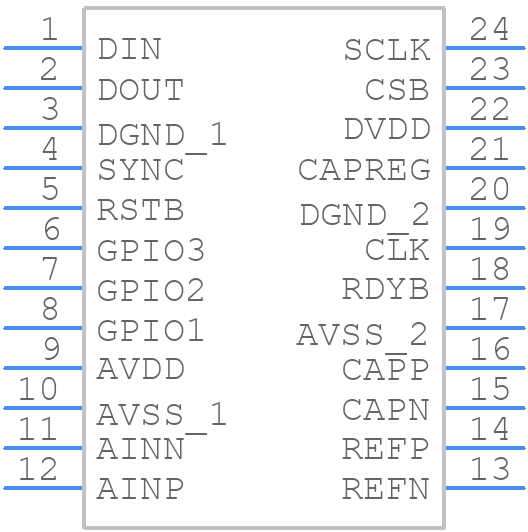

MAX11216EUG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11216EUG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U24+2
click to zoom
3D Models
MAX11216EUG+ - Analog Devices - 3D model - Small Outline Packages - U24+2
click to zoom

MAX11216EUG+ Details

  • Manufacturer Part Number:

    MAX11216EUG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2014-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -1.8 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.064 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX11216EUG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11216EUG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX11216EUG+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate of the MAX11216EUG+ depends on the specific configuration and the clock frequency. In general, the device can achieve sampling rates up to 1.5Msps in single-channel mode and up to 750ksps in dual-channel mode.
  • The MAX11216EUG+ has an internal calibration mechanism that can be triggered through the CAL pin. The device can also be calibrated using an external calibration signal. It's recommended to calibrate the device during power-up and after any changes to the analog input range or gain settings.
  • The power consumption of the MAX11216EUG+ depends on the specific configuration and operating mode. In general, the device consumes around 15mW of power in normal operation mode and around 1.5mW in shutdown mode.
