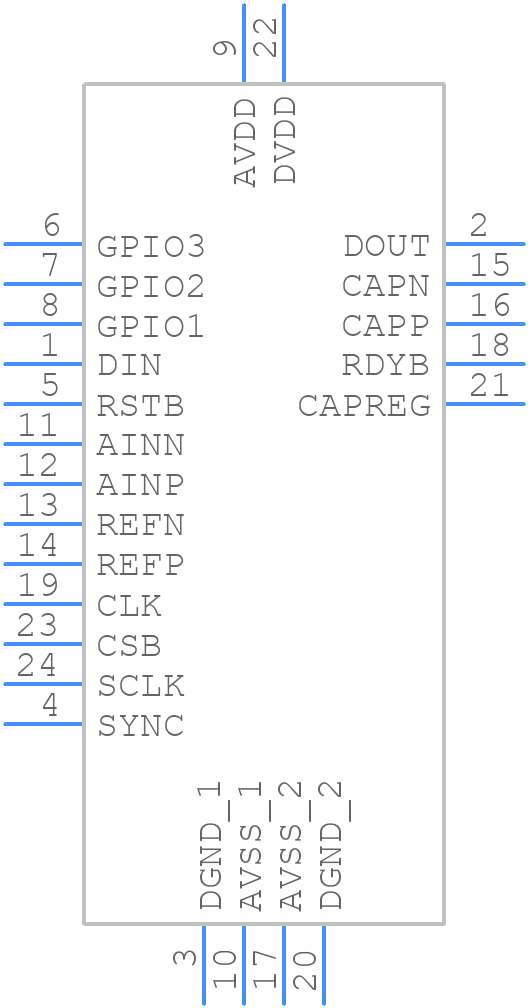

MAX11270EUG+ - Analog Devices

MAX11270EUG+ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the MAX11270EUG+?
  A good PCB layout for the MAX11270EUG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
• How do I optimize the performance of the MAX11270EUG+ in noisy environments?
  To optimize the performance of the MAX11270EUG+ in noisy environments, use a low-pass filter on the analog input signals, use a shielded cable for the analog input connections, and consider using a common-mode filter on the analog input lines. Additionally, ensure that the device is properly decoupled and that the power supply is clean and well-regulated.
• What is the maximum sampling rate that can be achieved with the MAX11270EUG+?
  The maximum sampling rate of the MAX11270EUG+ depends on the specific configuration and the clock frequency used. However, the device can achieve sampling rates of up to 1.5 MSPS in high-speed mode and up to 100 kSPS in low-power mode.
• How do I calibrate the MAX11270EUG+ for optimal performance?
  The MAX11270EUG+ has an internal calibration mechanism that can be initiated through the SPI interface. The device can be calibrated for offset, gain, and linearity. It's recommended to perform calibration at power-up and after any changes to the device configuration or operating conditions.
• What is the power consumption of the MAX11270EUG+ in different operating modes?
  The power consumption of the MAX11270EUG+ varies depending on the operating mode. In high-speed mode, the device consumes around 25 mW, while in low-power mode, it consumes around 1.5 mW. In shutdown mode, the device consumes less than 1 μW.
