MAX11300GTL+T - Analog Devices

Description: PIXI, 20-Port Programmable Mixed-Signal I/O with 12-Bit ADC, 12-Bit DAC, Analog Switches, and GPIO

Download MAX11300GTL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

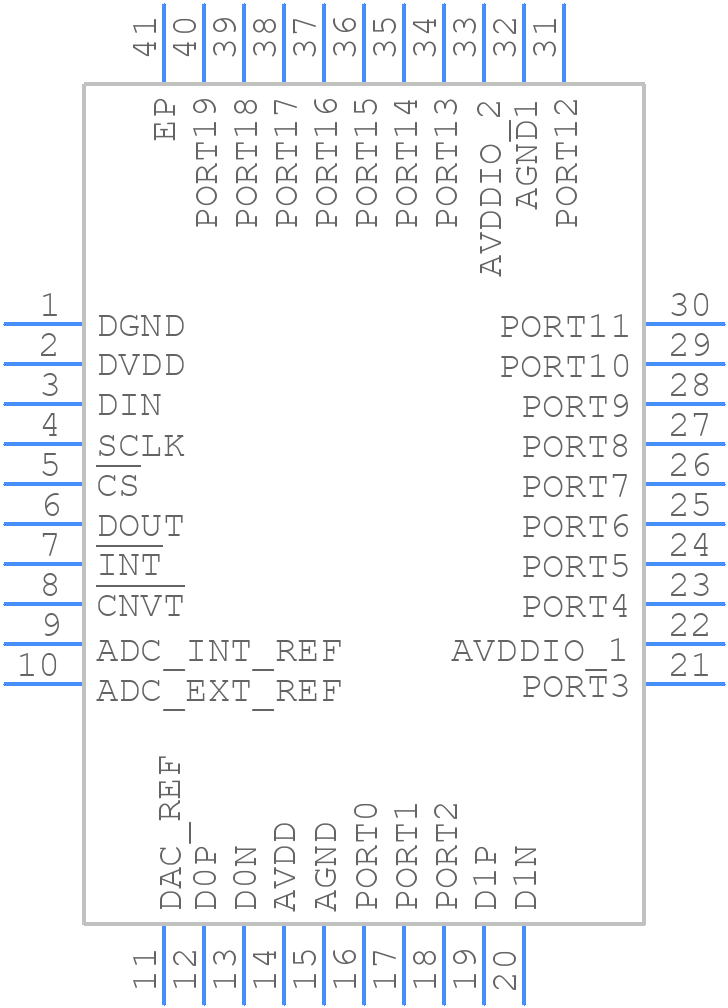

MAX11300GTL+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4066+3
click to zoom
3D Models
MAX11300GTL+T - Analog Devices  - 3D model - Quad Flat No-Lead - T4066+3
click to zoom

MAX11300GTL+T Details

  • Manufacturer Part Number:

    MAX11300GTL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-6X6X0.75

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, TQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-04-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO REQUIRES 3.3 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX11300GTL+T Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX11300GTL+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-impedance power supply. A detailed layout and routing guide can be found in the MAX11300 evaluation kit documentation.
  • The MAX11300GTL+T can be configured for a specific application by programming the device's registers using the SPI interface. The configuration options include setting the analog-to-digital converter (ADC) mode, selecting the input channels, and configuring the digital filter. The device's datasheet and programming guide provide detailed information on the available configuration options and the required programming sequences.
  • The maximum sampling rate of the MAX11300GTL+T is 1.1Msps (megasamples per second). The sampling rate affects the device's power consumption, with higher sampling rates resulting in higher power consumption. The device's power consumption can be estimated using the formula provided in the datasheet, which takes into account the sampling rate, the number of channels, and the operating mode.
  • The MAX11300GTL+T has built-in overvoltage and undervoltage protection on the analog input channels. The device can withstand input voltages up to ±25V without damage, and it has a programmable overvoltage detection threshold. If an overvoltage or undervoltage condition is detected, the device will set a flag in the status register and can be configured to take specific actions, such as shutting down the ADC or generating an interrupt.
  • The MAX11300GTL+T's ADC has a typical accuracy of ±0.5LSB and a linearity of ±1LSB. The accuracy and linearity can vary with temperature and supply voltage, but the device is designed to maintain its performance over the specified operating range. The datasheet provides detailed information on the ADC's performance characteristics, including the effects of temperature and supply voltage on accuracy and linearity.
