MAX11331ATJ+ - Analog Devices

Description: Analog to Digital Converters - ADC 3Msps, Low-Power, Serial 12-/10-Bit, 8-/16-Channel ADCs with flexible single external conditioning

Download MAX11331ATJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

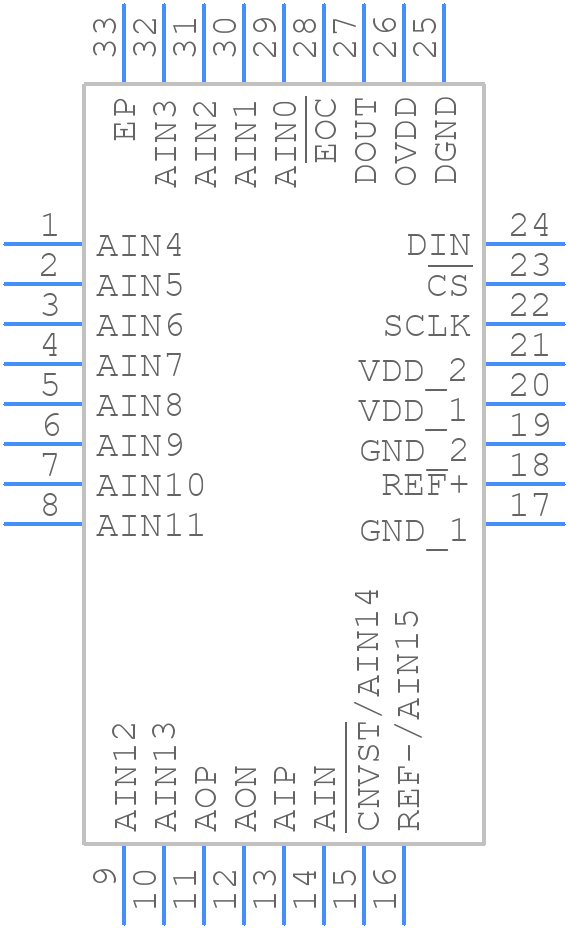

Symbol
MAX11331ATJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11331ATJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 21-0140_26
click to zoom
3D Models
MAX11331ATJ+ - Analog Devices - 3D model - Quad Flat No-Lead - 21-0140_26
click to zoom

MAX11331ATJ+ Details

  • Manufacturer Part Number:

    MAX11331ATJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    SSOP-16

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2012-05-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    4.096 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Linearity Error-Max (EL):

    0.024414%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.55 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX11331ATJ+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX11331ATJ+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11331ATJ+ in noisy environments, it's recommended to use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, using a common-mode choke on the power supply lines can help to reduce noise.
  • The maximum operating temperature range for the MAX11331ATJ+ is -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
  • The MAX11331ATJ+ can be programmed for custom gain and offset settings using the SPI interface. The device has a set of registers that can be written to using the SPI interface to set the gain and offset values. The specific programming sequence and register addresses can be found in the datasheet.
  • The recommended power-up sequence for the MAX11331ATJ+ is to power up the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up or damage to the device.
