MAX11410ATI+ - Analog Devices

Description: Maxim MAX11410ATI+, 24 bit ADC Differential Input, 28-Pin TQFN-EP

Download MAX11410ATI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

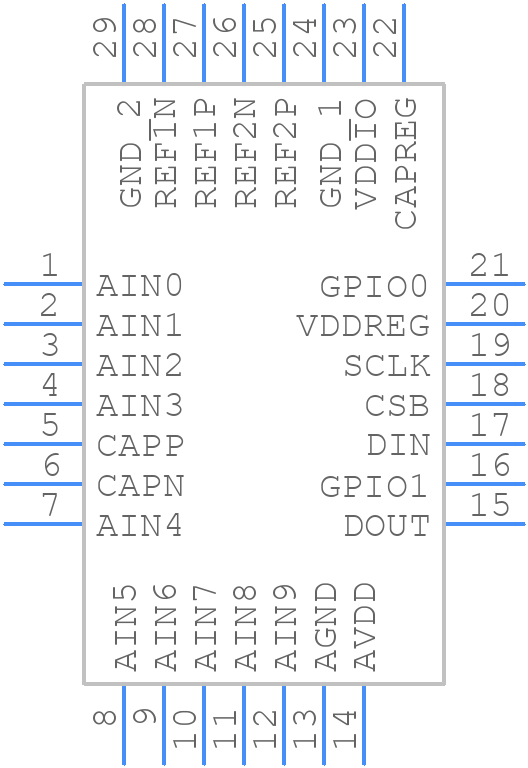

MAX11410ATI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11410ATI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - t2844-1
click to zoom
3D Models
MAX11410ATI+ - Analog Devices - 3D model - Quad Flat No-Lead - t2844-1
click to zoom

MAX11410ATI+ Details

  • Manufacturer Part Number:

    MAX11410ATI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-4X4X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2016-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -0.75 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0012%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    9

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0019 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX11410ATI+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the REF pin. Refer to the application note AN-1149 for more details.
  • Calibration involves adjusting the internal offset and gain of the ADC. The MAX11410ATI+ has a built-in calibration feature that can be accessed through the CAL pin. Refer to the datasheet section 7.3 for the calibration procedure. Additionally, it's recommended to use an external reference voltage source and to calibrate the ADC at the operating temperature range.
  • The maximum sampling rate of the MAX11410ATI+ is 1Msps (million samples per second) in the fast mode, and 500ksps in the normal mode. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the interface mode used.
  • Yes, the MAX11410ATI+ can operate in a multiplexed mode, allowing multiple analog inputs to be connected to the ADC. This is achieved by using the MUX pin to select the desired input channel. The MUX pin can be controlled by an external digital signal, and the ADC will automatically switch between the selected channels.
  • The power consumption of the MAX11410ATI+ depends on the operating mode, sampling rate, and supply voltage. In the normal mode, the typical power consumption is around 15mW. To minimize power consumption, use the shutdown mode when the ADC is not in use, reduce the sampling rate, and use a lower supply voltage if possible.
