MAX11609EEE+T - Analog Devices

Description: IC, ADC, 10BIT, 94.4KSPS, QSOP-16 Resolution (Bits):10 Sample Rate:94.4kSPS Input Channel Type:Differential, Single Ended Data Interface:Serial, I2C Supply Voltage Range-Analog:2.7V to 3.6V Supply Current:670µA

Download MAX11609EEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

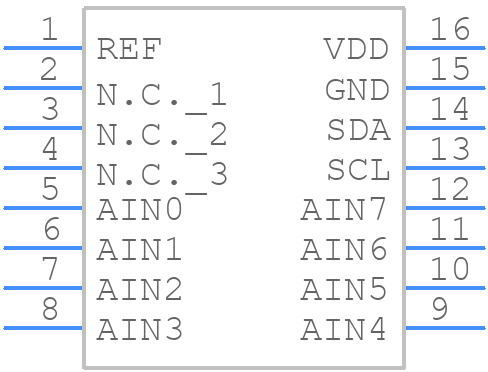

MAX11609EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11609EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX11609EEE+T - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX11609EEE+T Details

  • Manufacturer Part Number:

    MAX11609EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2009-05-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.8 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Conversion Time-Max:

    6.8 µs

  • Converter Type:

    A/D CONVERTER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0944 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX11609EEE+T Frequently Asked Questions (FAQs)

  • The MAX11609EEE+T requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog-to-digital converter (ADC) and to use a ground plane to reduce noise. Additionally, the device should be placed away from high-frequency signals and digital lines.
  • The MAX11609EEE+T requires a specific power-up sequence to avoid damage or incorrect operation. The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD) and then the clock signal. This sequence ensures that the device powers up correctly and avoids damage.
  • The recommended clock frequency range for the MAX11609EEE+T is between 1 MHz and 50 MHz. The clock frequency affects the device's performance, with higher clock frequencies resulting in faster conversion rates but also increasing power consumption. The optimal clock frequency depends on the specific application requirements.
  • The MAX11609EEE+T outputs data in a 16-bit or 18-bit word length, depending on the configuration. The output data format is twos complement, and the device can be configured to output data in either MSB-first or LSB-first format. The system design must take into account the output data format and word length to ensure correct data processing and handling.
  • The MAX11609EEE+T is a high-performance device that can generate heat during operation. To ensure reliable operation over temperature, it is recommended to provide adequate heat sinking and to follow proper thermal design guidelines. The device is rated for operation over a temperature range of -40°C to +125°C, and the system design must take into account the thermal requirements to ensure reliable operation.
