MAX11645EWC+T - Analog Devices

Description: Analog to Digital Converters - ADC Low-Power, 1-/2-Channel, I C, 12-Bit ADCs in Ultra-Tiny 1.9mm x 2.2mmPackage

Download MAX11645EWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

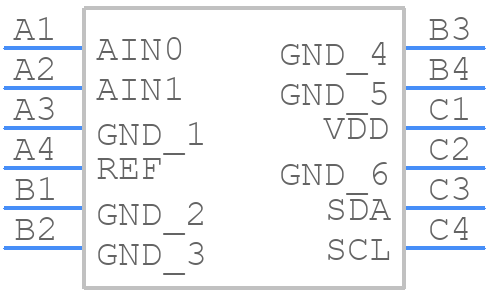

Symbol
MAX11645EWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11645EWC+T - Analog Devices PCB footprint - BGA - BGA - W121C2+1
click to zoom
3D Models
MAX11645EWC+T - Analog Devices - 3D model - BGA - W121C2+1
click to zoom

MAX11645EWC+T Details

  • Manufacturer Part Number:

    MAX11645EWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    1.9 X 2.2 MM, ROHS COMPLIANT, WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-05-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.064 V

  • Analog Input Voltage-Min:

    -1.064 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    A/D CONVERTER

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    2.215 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0944 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max:

    1.15 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.885 mm

MAX11645EWC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11645EWC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To properly configure the MAX11645EWC+T, you need to consider factors such as the input signal range, gain, and offset. You can use the device's internal reference voltage or an external reference voltage, and configure the gain and offset using the device's programming pins. You may also need to add external components such as resistors and capacitors to filter the input signal or adjust the device's performance.
  • The MAX11645EWC+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • To ensure the MAX11645EWC+T is properly powered and decoupled, you should use a high-quality power supply with low noise and ripple, and decouple the device's power pins using ceramic capacitors with a value of at least 10uF. You should also consider adding a ferrite bead or a power inductor to filter the power supply and reduce electromagnetic interference (EMI).
  • The typical power consumption of the MAX11645EWC+T is around 1.5mA, but this can vary depending on the device's configuration, operating frequency, and input signal range. You should consult the datasheet and application notes for more detailed information on power consumption and how to minimize it.
