MAX11646EUA+ - Analog Devices

Description: Analog to Digital Converters - ADC 10-Bit 2Ch 94.4ksps 5.5V Precision ADC

Download MAX11646EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

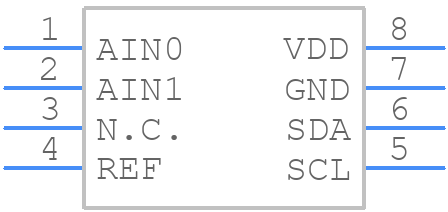

MAX11646EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11646EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - u8-2020
click to zoom
3D Models
MAX11646EUA+ - Analog Devices - 3D model - Small Outline Packages - u8-2020
click to zoom

MAX11646EUA+ Details

  • Manufacturer Part Number:

    MAX11646EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-02-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.256 V

  • Conversion Time-Max:

    6.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11646EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11646EUA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11646EUA+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum operating temperature range for the MAX11646EUA+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within the recommended operating temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX11646EUA+ can be used with a 3.3V power supply. The device's analog supply voltage (AVDD) can range from 2.7V to 5.5V, and the digital supply voltage (DVDD) can range from 1.7V to 5.5V. However, ensure that the power supply is clean and well-regulated to avoid affecting the device's performance.
  • To troubleshoot issues with the MAX11646EUA+, start by checking the power supply voltages, ensuring that they are within the recommended range. Next, verify that the analog input signals are within the recommended range and that the device is properly configured. Use an oscilloscope to check the analog output signals and ensure that they are not clipped or distorted. If issues persist, consult the datasheet and application notes for further guidance.
