MAX1202BCAP+ - Analog Devices

Description: IC,ADC,MAX1202BCAP+ Maxim MAX1202BCAP+, 12 bit Serial ADC, 8-channel Differential Input, 20-Pin SSOP

Download MAX1202BCAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

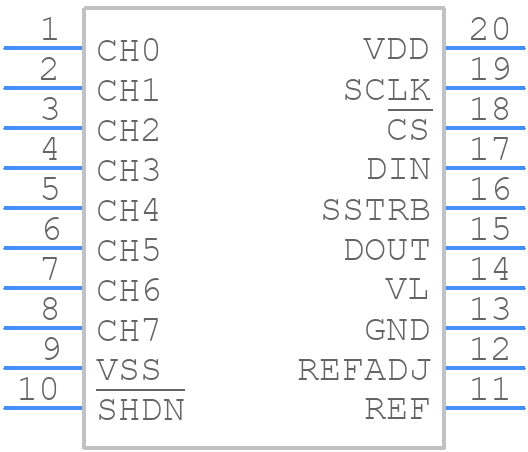

Symbol
MAX1202BCAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1202BCAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0056 E
click to zoom
3D Models
MAX1202BCAP+ - Analog Devices - 3D model - Small Outline Packages - 21-0056 E
click to zoom

MAX1202BCAP+ Details

  • Manufacturer Part Number:

    MAX1202BCAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    5.30 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    10 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX1202BCAP+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX1202BCAP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-pass filter to reduce high-frequency noise.
  • The MAX1202BCAP+ requires a calibration process to ensure accurate conversions. This involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process can be done using the device's built-in calibration mode or through external calibration using a microcontroller or other external device.
  • The MAX1202BCAP+ is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Engineers should consider the device's temperature coefficient, which affects its gain and offset, and ensure proper thermal management to maintain accuracy and reliability.
  • The MAX1202BCAP+ has a power-on reset (POR) and brown-out reset (BOR) feature to ensure the device resets properly during power-up and power-down sequences. Engineers should ensure that the device is properly powered and that the POR and BOR thresholds are set correctly to avoid unwanted resets or malfunctions.
  • The MAX1202BCAP+ is a high-speed analog-to-digital converter, and as such, it can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). Engineers should take precautions to shield the device, use proper grounding and shielding techniques, and ensure that the device is placed in a low-noise environment to minimize the impact of EMI and RFI.
