MAX122ACNG+ - Analog Devices

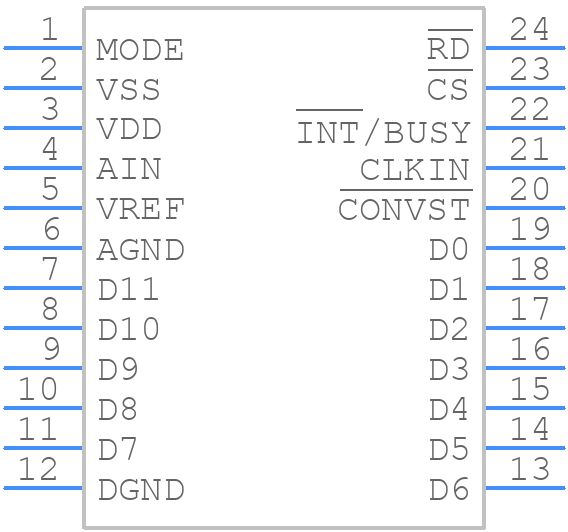

MAX122ACNG+ Details

• Manufacturer Part Number:

  MAX122ACNG+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

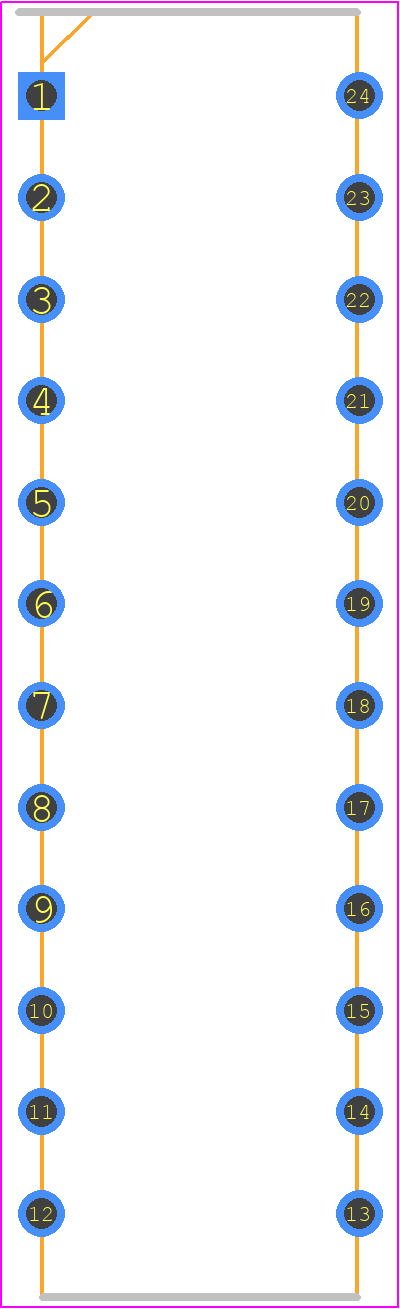

• Part Package Code:

  24-PDIP-300_MIL

• Package Description:

  PLASTIC, DIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  24-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  1992-09-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  5 V

• Analog Input Voltage-Min:

  -5 V

• Conversion Time-Max:

  2.6 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e3

• Length:

  31.75 mm

• Linearity Error-Max (EL):

  0.018%

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -12 V

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  2S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.333 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  15.24 mm
