MAX1231BEEG+ - Analog Devices

Description: Maxim Integrated MAX1231BEEG+, 12 bit ADC 16-Channel Differential, Single Ended Input, 24-Pin QSOP

Download MAX1231BEEG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

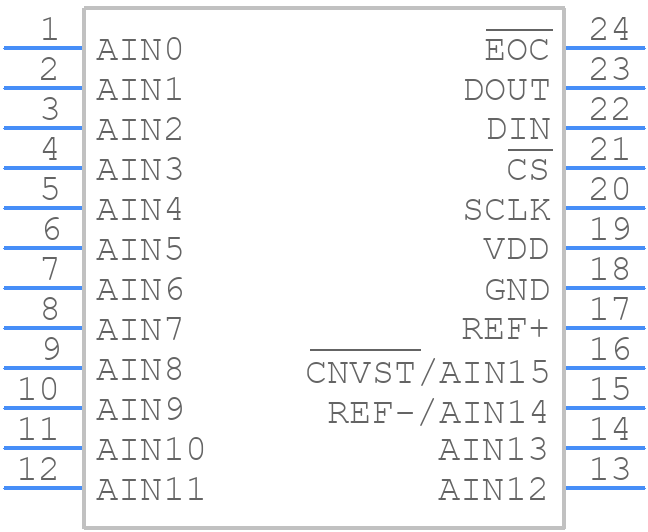

MAX1231BEEG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1231BEEG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-24
click to zoom
3D Models
MAX1231BEEG+ - Analog Devices - 3D model - Small Outline Packages - QSOP-24
click to zoom

MAX1231BEEG+ Details

  • Manufacturer Part Number:

    MAX1231BEEG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-QSOP-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2003-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.65 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.073 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1231BEEG+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1231BEEG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, the device should be placed away from high-frequency noise sources and digital signals should be routed away from the analog signals.
  • To ensure accurate temperature measurements with the MAX1231BEEG+, the device should be calibrated at multiple temperature points, and the thermal resistance between the device and the temperature source should be considered. Additionally, the device should be operated within its specified temperature range and the temperature measurement should be averaged over multiple readings to reduce noise.
  • The maximum allowed voltage on the digital input pins of the MAX1231BEEG+ is the supply voltage (VCC) or 5.5V, whichever is lower. Exceeding this voltage may damage the device.
  • The MAX1231BEEG+ can be interfaced with a microcontroller using a serial interface such as SPI or I2C. The device should be connected to the microcontroller's digital input/output pins, and the communication protocol should be implemented according to the device's datasheet and the microcontroller's specifications.
  • The power consumption of the MAX1231BEEG+ depends on the operating mode and the supply voltage. According to the datasheet, the typical power consumption is around 1.5mA at 5V supply voltage. However, this value may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1231BEEG+ Overview

Use the download button to access the MAX1231BEEG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
