MAX1247BEEE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1247BEEE+ - Analogue to Digital Converter, High Speed, 12 bit, 133 kSPS, Differential, Single Ended, SPI

Download MAX1247BEEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

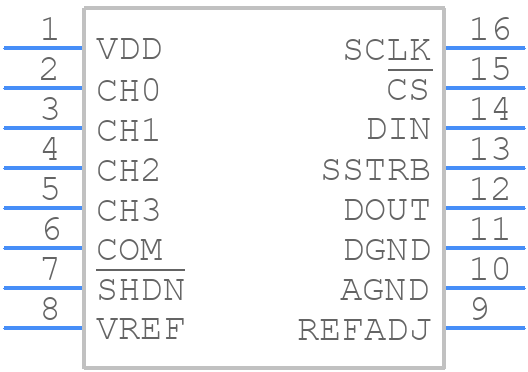

MAX1247BEEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1247BEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+5
click to zoom
3D Models
MAX1247BEEE+ - Analog Devices - 3D model - Small Outline Packages - E16+5
click to zoom

MAX1247BEEE+ Details

  • Manufacturer Part Number:

    MAX1247BEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    65 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1247BEEE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX1247BEEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to place the bypass capacitors as close as possible to the IC and to use a low-ESR capacitor for the VCC pin.
  • To ensure proper power-up and initialization of the MAX1247BEEE+, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC pin is bypassed with a suitable capacitor and that the input signals are within the recommended voltage range.
  • The MAX1247BEEE+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX1247BEEE+, start by checking the power supply voltage, input signals, and output loads. Verify that the device is properly powered up and initialized, and that the input signals are within the recommended voltage range. Use an oscilloscope to check for oscillations or incorrect output voltages, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX1247BEEE+ is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure its suitability for safety-critical applications. Consult the datasheet and relevant industry standards (e.g., IEC 61508, ISO 26262) for guidance on using the MAX1247BEEE+ in high-reliability or safety-critical applications.
