MAX1253BEUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1253BEUE+ - Analogue to Digital Converter, Stand Alone, 12 bit, 94 kSPS, Differential, Single Ended, SPI

Download MAX1253BEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

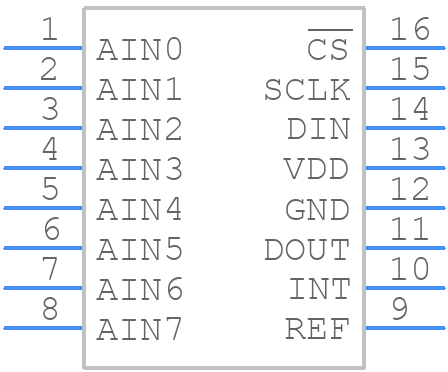

Symbol
MAX1253BEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1253BEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 TSSOP
click to zoom
3D Models
MAX1253BEUE+ - Analog Devices - 3D model - Small Outline Packages - 16 TSSOP
click to zoom

MAX1253BEUE+ Details

  • Manufacturer Part Number:

    MAX1253BEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ONE OF THE INTERNAL CHANNEL MONITORS THE INTERNAL IC TEMPERATURE

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1253BEUE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX1253BEUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • The MAX1253BEUE+ requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power source, and to ensure that the power supply is stable before applying any analog input signals. The power sequencing requirements are not critical, but it's recommended to power the device after the analog input signals are stable.
  • The maximum clock frequency that can be used with the MAX1253BEUE+ is 50MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. The clock signal should also be synchronized with the analog input signals to ensure proper sampling.
  • The digital output data from the MAX1253BEUE+ is available in a 12-bit parallel format. The output data is available on the D0 to D11 pins, with the most significant bit (MSB) on D11 and the least significant bit (LSB) on D0. The output data is updated on the falling edge of the clock signal.
  • The maximum analog input signal frequency that can be used with the MAX1253BEUE+ is 1MHz. The analog input signal should be a differential signal with a common-mode voltage range of 0V to VCC. The analog input signal should also be band-limited to prevent aliasing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1253BEUE+ Overview

Use the download button to access the MAX1253BEUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
