MAX1254BEUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1254BEUE+ - ADC, 10-CH, SAR, 12BIT, 94KSPS, TSSOP-16

Download MAX1254BEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

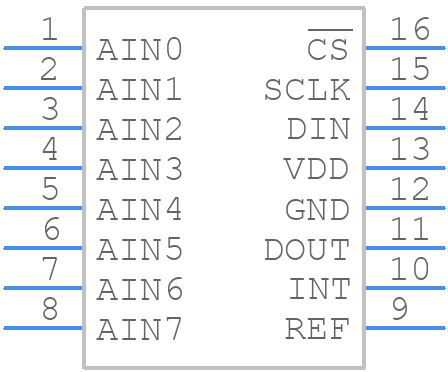

MAX1254BEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1254BEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin TSSOP
click to zoom
3D Models
MAX1254BEUE+ - Analog Devices - 3D model - Small Outline Packages - 16-Pin TSSOP
click to zoom

MAX1254BEUE+ Details

  • Manufacturer Part Number:

    MAX1254BEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ONE OF THE INTERNAL CHANNEL MONITORS THE INTERNAL IC TEMPERATURE

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1254BEUE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX1254BEUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • The MAX1254BEUE+ requires a single 2.7V to 3.6V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the analog power supply is stable, and to ensure that the digital power supply is powered up after the analog power supply.
  • The maximum clock frequency for the MAX1254BEUE+ is 50MHz. The device requires a clock signal with a duty cycle of 40% to 60% and a rise and fall time of less than 10ns. It's also recommended to use a clock signal with low jitter to ensure optimal performance.
  • The MAX1254BEUE+ can be programmed using a 3-wire serial interface (SPI) or a 2-wire serial interface (I2C). The device has several programming modes, including a normal mode, a standby mode, and a shutdown mode. The programming modes can be selected using the device's control registers.
  • The maximum data transfer rate for the MAX1254BEUE+ is 50Mbps. The device uses a 16-bit data format, and the data is transmitted in a serial format using the SPI or I2C interface. The device also supports a variety of data formatting options, including 2's complement and offset binary.
