MAX125CCAX+D - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX125CCAX+D - ADC, 8-CH, SAR, 14BIT, 250KSPS, SSOP-36

Download MAX125CCAX+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

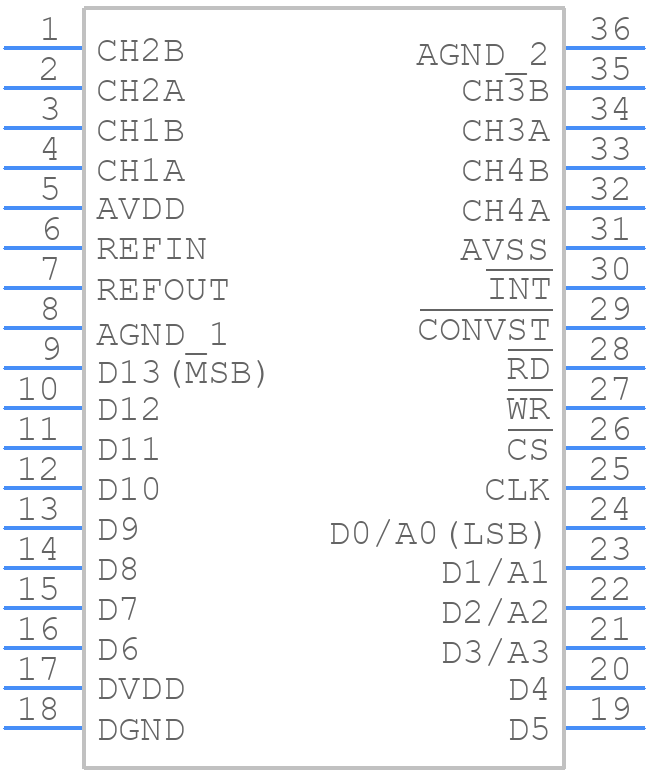

MAX125CCAX+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX125CCAX+D - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A36+4
click to zoom
3D Models
MAX125CCAX+D - Analog Devices - 3D model - Small Outline Packages - A36+4
click to zoom

MAX125CCAX+D Details

  • Manufacturer Part Number:

    MAX125CCAX+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    0.163 INCH, 0.80 MM PITCH, ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    15.415 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    7.495 mm

MAX125CCAX+D Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX125CCAX+D involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • The MAX125CCAX+D requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD), and to power down the digital supply before the analog supply.
  • The maximum clock frequency for the MAX125CCAX+D is 20MHz, and it's recommended to use a clock signal with a 50% duty cycle and a rise/fall time of less than 10ns. Additionally, the clock signal should be synchronized with the conversion process to ensure proper operation.
  • The MAX125CCAX+D outputs 12-bit parallel data, and the output data is in a straight binary format. The device also provides a data-ready signal (DRDY) to indicate when the conversion is complete and the data is ready to be read.
  • The MAX125CCAX+D operates over a temperature range of -40°C to +85°C, and its performance is affected by temperature. The device's conversion rate, linearity, and offset voltage may vary with temperature, so it's recommended to calibrate the device over the operating temperature range.
