MAX125CEAX+D - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX125CEAX+D - ADC, 8-CH, SAR, 14BIT, 250KSPS, SSOP-36

Download MAX125CEAX+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

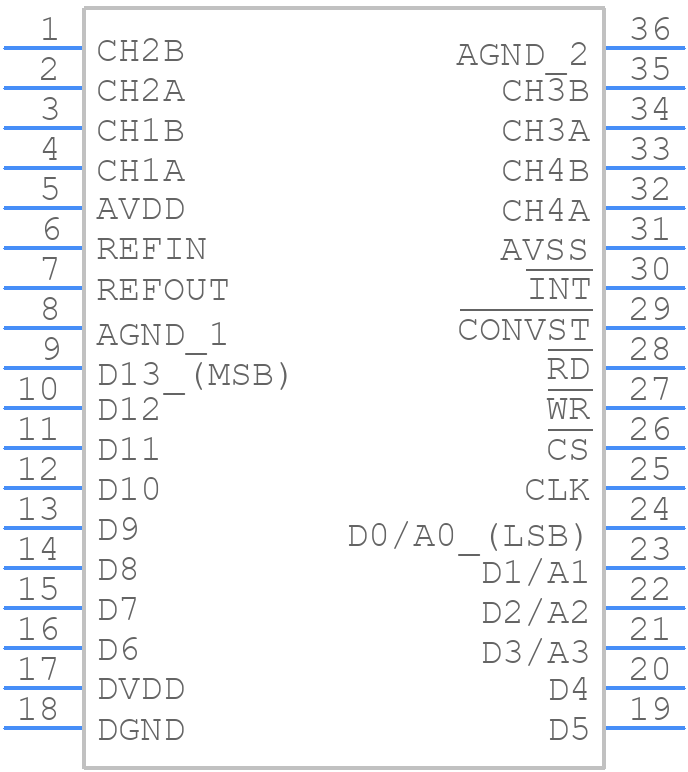

MAX125CEAX+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX125CEAX+D - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A36+4
click to zoom
3D Models
MAX125CEAX+D - Analog Devices - 3D model - Small Outline Packages - A36+4
click to zoom

MAX125CEAX+D Details

  • Manufacturer Part Number:

    MAX125CEAX+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    0.163 INCH, 0.80 MM PITCH, ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.415 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.495 mm

MAX125CEAX+D Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX125CEAX+D involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • The MAX125CEAX+D requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator to power the device. The power sequencing requirement is to power up the VCC pin before the analog signal inputs, and to ensure that the power supply is stable before applying any analog signals.
  • The maximum allowable input voltage for the MAX125CEAX+D is 5.5V, and it's not designed to handle overvoltage conditions. If the input voltage exceeds 5.5V, it may cause permanent damage to the device. It's recommended to use input protection circuits, such as voltage dividers or clamping diodes, to prevent overvoltage conditions.
  • The MAX125CEAX+D can handle a common-mode voltage range of -2V to +2V, and it has a typical CMRR of 80dB. The device uses a differential amplifier architecture to reject common-mode noise and provide a high CMRR.
  • The MAX125CEAX+D has a maximum data rate of 100kbps and a bandwidth of 1MHz. It's designed to handle high-frequency signals up to 1MHz, but it may require additional filtering or signal conditioning for higher frequency signals.
