MAX13020ASA+ - Analog Devices

Description: ±60V Fault-Protected LIN Transceivers

Download MAX13020ASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

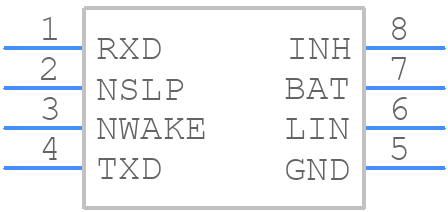

MAX13020ASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13020ASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX13020ASA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX13020ASA+ Details

  • Manufacturer Part Number:

    MAX13020ASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2006-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX13020ASA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX13020ASA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX13020ASA+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying VCC before applying VIN. Also, ensure that the input voltage is within the recommended range and that the device is properly bypassed with capacitors.
  • The maximum operating temperature range for the MAX13020ASA+ is -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
  • To troubleshoot issues with the MAX13020ASA+, start by checking the power supply and input voltage to ensure they are within the recommended range. Then, check the output voltage and current to ensure they are within the expected range. If the issue persists, use an oscilloscope to check for noise and oscillations on the output. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX13020ASA+ is suitable for use in high-reliability and safety-critical applications. It's designed to meet the requirements of automotive and industrial applications, and it's qualified to AEC-Q100 and IEC 60747-5 standards. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13020ASA+ Overview

Use the download button to access the MAX13020ASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Network Interfaces
