MAX13052ASA+ - Analog Devices

Description: Industry-Standard High-Speed CAN Transceivers with ±80V Fault Protection

Download MAX13052ASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

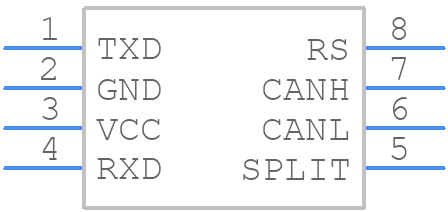

MAX13052ASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13052ASA+ - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
MAX13052ASA+ - Analog Devices - 3D model - Other - SOIC127P600X175-8N
click to zoom

MAX13052ASA+ Details

  • Manufacturer Part Number:

    MAX13052ASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    72 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX13052ASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13052ASA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
  • To ensure accuracy in high-temperature applications, it's essential to consider the device's temperature coefficient, which is specified in the datasheet. Additionally, using a thermocouple or thermistor to monitor the temperature and compensate for any drift can help maintain accuracy.
  • Yes, the MAX13052ASA+ can operate from a 3.3V supply, but the input voltage range is limited to 0V to VCC - 1.5V. If your system requires a 3.3V input range, you may need to use an external voltage divider or level shifter to ensure the input voltage stays within the specified range.
  • The MAX13052ASA+ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, using ESD protection devices such as TVS diodes or ESD arrays on the input lines can provide extra protection.
  • The recommended input impedance for the MAX13052ASA+ is 1kΩ or higher to ensure accurate measurements. Lower input impedances can lead to measurement errors and affect the device's performance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX13052ASA+ Overview

Use the download button to access the MAX13052ASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
