MAX13052ESA+ - Analog Devices

Description: CAN Transceiver 1Mbit/s ISO 11898 Standby-Mode 8pins SOIC

Download MAX13052ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

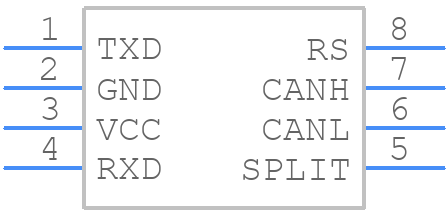

MAX13052ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13052ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX13052ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX13052ESA+ Details

  • Manufacturer Part Number:

    MAX13052ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX13052ESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX13052ESA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the MAX13052ESA+ in a noisy environment, use a low-pass filter on the input pins, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded cable for the input signals. Additionally, consider using a separate analog power supply and ground plane to isolate the device from digital noise.
  • The maximum operating temperature range for the MAX13052ESA+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within the specified temperature range for optimal performance.
  • Yes, the MAX13052ESA+ is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB design and assembly guidelines to ensure the device is securely attached to the board and can withstand the vibration. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
  • To troubleshoot issues with the MAX13052ESA+, start by checking the power supply voltage and ensuring it's within the specified range. Then, verify the input signals are within the specified range and not exceeding the maximum ratings. Use an oscilloscope to check for noise and distortion on the input and output signals. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13052ESA+ Overview

Use the download button to access the MAX13052ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
