MAX13058EETI+ - Analog Devices

Description: Translation - Voltage Levels MAX13058EETI+

Download MAX13058EETI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

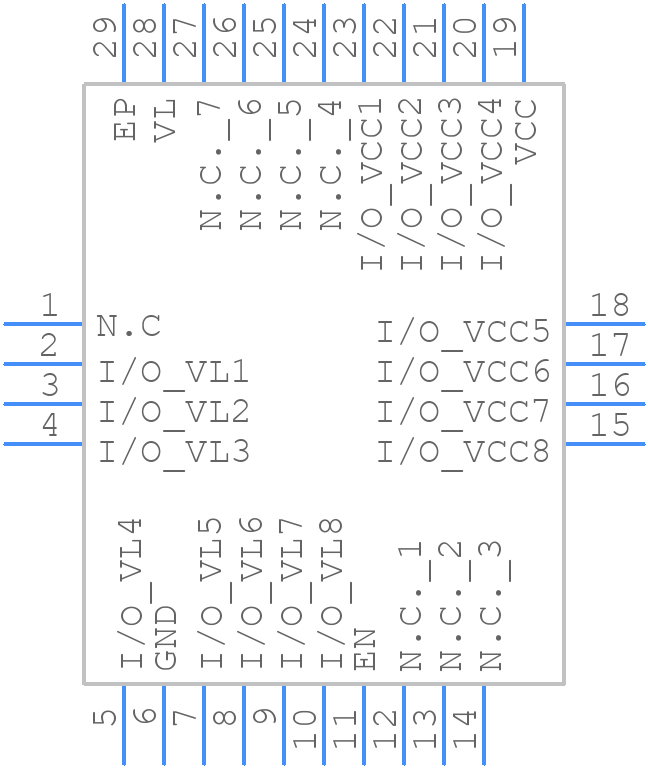

MAX13058EETI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13058EETI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 TQFN-EP (T283555+1)
click to zoom
3D Models
MAX13058EETI+ - Analog Devices - 3D model - Quad Flat No-Lead - 28 TQFN-EP (T283555+1)
click to zoom

MAX13058EETI+ Details

  • Manufacturer Part Number:

    MAX13058EETI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-3.5X5.5X0.75

  • Package Description:

    5.5 X 3.5 MM, ROHS COMPLIANT, TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-3.5X5.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2009-08-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-XQCC-N28

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC28(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX13058EETI+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX13058EETI+ can be found in the MAX13058EETI+ Evaluation Kit documentation, which includes a detailed layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the MAX13058EETI+ for low-power consumption, ensure that the device is operated within the recommended voltage range, use the lowest possible clock frequency, and disable any unused features. Additionally, consider using the device's power-down mode, which can reduce power consumption to less than 1µA.
  • The maximum cable length supported by the MAX13058EETI+ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at data rates up to 100Mbps. For longer cable lengths or higher data rates, consider using repeaters or active cables.
  • Yes, the MAX13058EETI+ is designed to operate in harsh industrial environments, with an operating temperature range of -40°C to +125°C and a high level of electromagnetic interference (EMI) immunity. However, it's essential to ensure that the device is properly soldered and mounted to a PCB, and that the PCB is designed to withstand the environmental stresses of the application.
  • To troubleshoot common issues with the MAX13058EETI+, start by reviewing the device's datasheet and application notes, which provide detailed troubleshooting guides and FAQs. Additionally, use oscilloscopes and logic analyzers to debug the device's signals and identify potential issues. Analog Devices also provides technical support and resources, including a knowledge base and community forums.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13058EETI+ Overview

Use the download button to access the MAX13058EETI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Other Interface ICs
