MAX13083EESD+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX13083EESD+ - Transceiver RS422, RS485, 4.5V-5.5V supply, 1 Driver, NSOIC-14

Download MAX13083EESD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

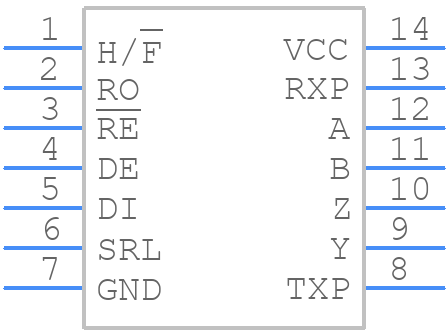

MAX13083EESD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13083EESD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S14+1
click to zoom
3D Models
MAX13083EESD+ - Analog Devices - 3D model - Small Outline Packages - S14+1
click to zoom

MAX13083EESD+ Details

  • Manufacturer Part Number:

    MAX13083EESD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-02-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Low Current-Max:

    0.001 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1000 ns

  • Width:

    3.9 mm

MAX13083EESD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13083EESD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX13083EESD+ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VREF, and finally the digital inputs. It's also important to ensure that the power supply is stable and noise-free.
  • The recommended input impedance for the MAX13083EESD+ is 1kΩ to 10kΩ. A higher input impedance can lead to increased noise sensitivity and reduced accuracy, while a lower input impedance can cause the device to oscillate. It's essential to match the input impedance to the source impedance to ensure optimal performance.
  • The MAX13083EESD+ requires a one-time calibration process to ensure accurate measurements. The calibration process involves applying a known input voltage and adjusting the internal offset and gain registers to achieve the desired accuracy. The calibration requirements involve using a high-precision voltage reference and ensuring that the device is operated within its specified temperature range.
  • The MAX13083EESD+ has built-in ESD protection features that protect the device from electrostatic discharge (ESD) events up to ±8kV. The ESD protection features include internal diodes and resistors that clamp the input voltage to prevent damage to the device. These features are designed to protect the device during handling, assembly, and operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13083EESD+ Overview

Use the download button to access the MAX13083EESD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
