MAX1314ECM+ - Analog Devices

Description: Analog to Digital Converters - ADC 8-/4-/2-Channel, 12-Bit, Simultaneous-Sampling ADCs with +/-10V, +/-5V, and 0 to +5V Analog Input Ranges

Download MAX1314ECM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

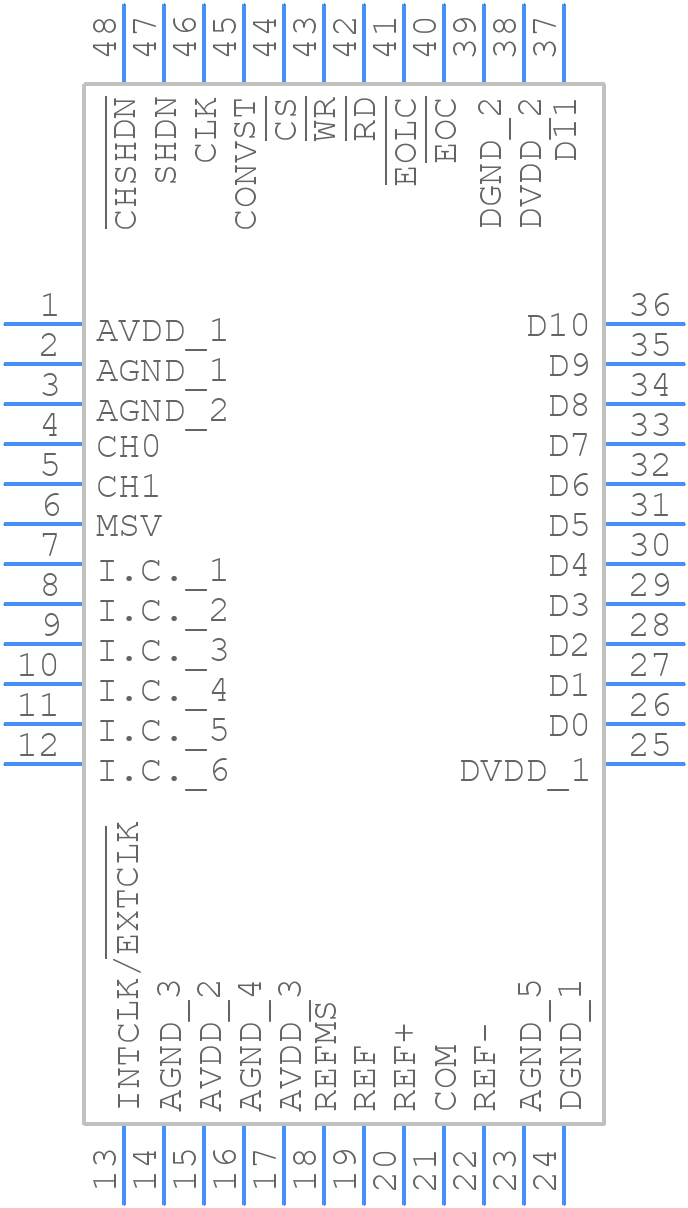

MAX1314ECM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1314ECM+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LQFP-7X7X1.4
click to zoom
3D Models
MAX1314ECM+ - Analog Devices - 3D model - Quad Flat Packages - 48-LQFP-7X7X1.4
click to zoom

MAX1314ECM+ Details

  • Manufacturer Part Number:

    MAX1314ECM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LQFP-7X7X1.4

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LQFP-7X7X1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2003-11-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    0.9 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.901 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX1314ECM+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1314ECM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX1314ECM+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a ferrite bead or a common-mode choke on the power supply lines to reduce noise.
  • The maximum cable length supported by the MAX1314ECM+ depends on the specific application and the type of cable used. However, as a general rule, the cable length should be kept as short as possible to minimize signal attenuation and noise pickup. A maximum cable length of 10 feet (3 meters) is recommended.
  • Yes, the MAX1314ECM+ can be used with a 3.3V power supply. However, the device's performance may be affected, and the output voltage range may be reduced. It's recommended to consult the datasheet and application notes for specific guidance on using the device with a 3.3V power supply.
  • To troubleshoot common issues with the MAX1314ECM+, start by checking the power supply voltage, analog input signal, and digital output signal. Use an oscilloscope to verify the signal integrity and check for noise or distortion. Also, check the device's temperature and ensure that it's within the recommended operating range.
