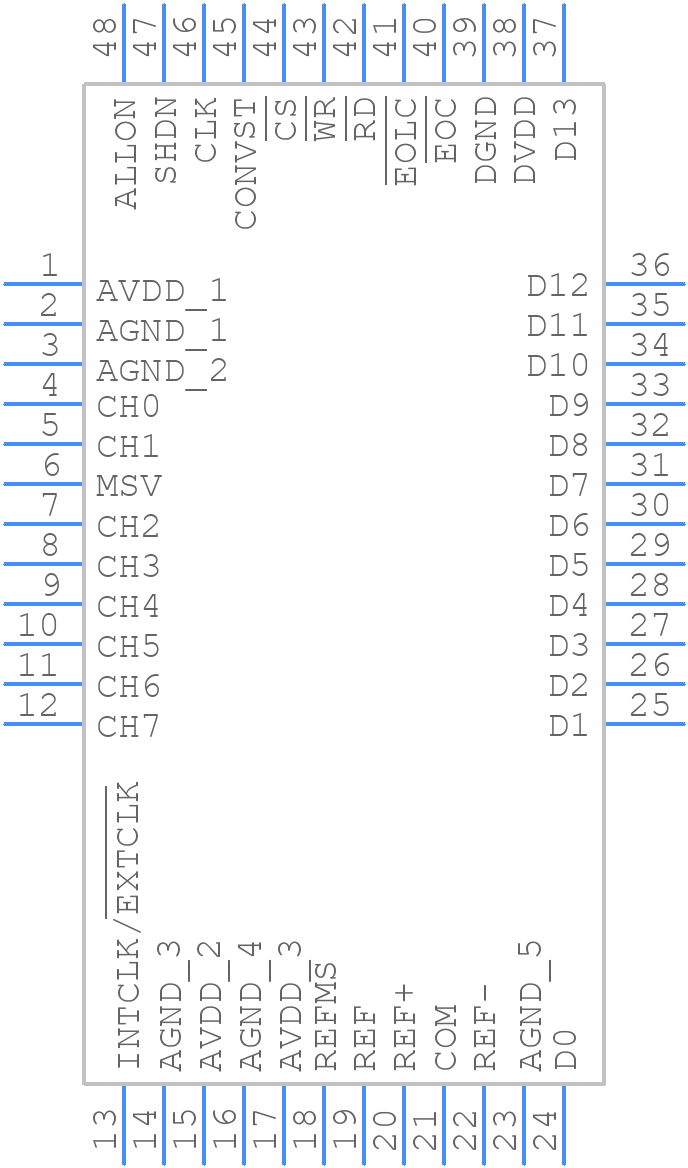

MAX1316ECM+ - Analog Devices

MAX1316ECM+ Details

• Manufacturer Part Number:

  MAX1316ECM+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  48-LQFP-7X7X1.4

• Package Description:

  7 X 7 MM, 1.40 MM HEIGHT, MS-026BBC, TQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  48-LQFP-7X7X1.4

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  2004-02-25

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  5 V

• Conversion Time-Max:

  3.7 µs

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Linearity Error-Max (EL):

  0.0122%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  8

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.25 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
