MAX13223EEUP+ - Analog Devices

Description: Dual Transmitter/Receiver RS-232 Maxim MAX13223EEUP+, Dual Line Transceiver, EIA/TIA-232/ RS-232 2-TX 2-RX 2-TRX, 3 ??? 5.5 V, 20-Pin TSSOP

Download MAX13223EEUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

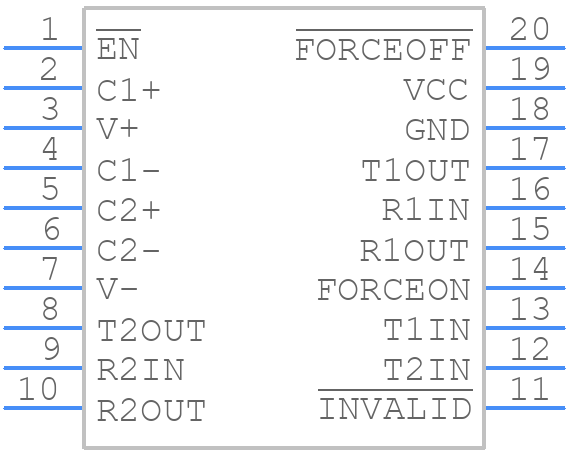

MAX13223EEUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13223EEUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 TSSOP
click to zoom
3D Models
MAX13223EEUP+ - Analog Devices - 3D model - Small Outline Packages - 20 TSSOP
click to zoom

MAX13223EEUP+ Details

  • Manufacturer Part Number:

    MAX13223EEUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    6.50 X 4.40 MM, ROHS COMPLIANT, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-05-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    300 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    4.4 mm

MAX13223EEUP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13223EEUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX13223EEUP+ requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean, low-noise power source. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable to prevent any potential latch-up conditions.
  • The maximum cable length that can be driven by the MAX13223EEUP+ depends on the specific application and the type of cable used. However, as a general rule, the device can drive cables up to 10 meters long at data rates up to 100 Mbps. For longer cable lengths or higher data rates, it's recommended to use a repeater or an active cable extender.
  • To troubleshoot common issues with the MAX13223EEUP+, start by checking the power supply and ensuring it's within the recommended specifications. Next, verify that the input signals are within the recommended voltage range and that the device is properly configured. Use an oscilloscope to check the signal integrity and look for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices' technical support.
  • Yes, when designing with the MAX13223EEUP+, it's essential to take into account EMI/EMC considerations to ensure the device operates reliably in a noisy environment. This includes using a shielded enclosure, keeping the device away from high-frequency sources, and using EMI filters or chokes to reduce emissions. Additionally, follow proper PCB layout and grounding techniques to minimize radiation and susceptibility.
