MAX13236EETE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX13236EETE+ - Transceiver, RS232, V.28/V.24, 3Mbps, 1 Driver, 3 V to 5.5 V Supply, TQFN-16

Download MAX13236EETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

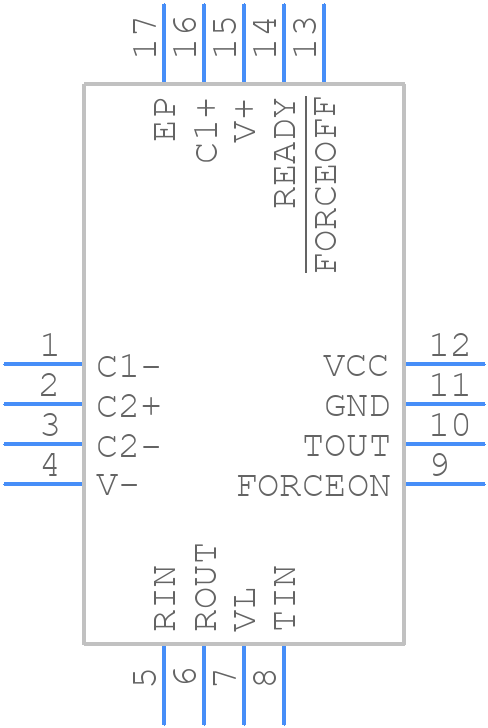

Symbol
MAX13236EETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13236EETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655-2-2020-2
click to zoom
3D Models
MAX13236EETE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1655-2-2020-2
click to zoom

MAX13236EETE+ Details

  • Manufacturer Part Number:

    MAX13236EETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    ROHS COMPLIANT, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0008 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX13236EETE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX13236EETE+ can be found in the MAX13236EETE+ Evaluation Kit documentation, which includes a layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To ensure proper power-up and initialization, follow the power-up sequence outlined in the datasheet, and make sure to meet the recommended power-supply decoupling and filtering requirements. Also, ensure that the EN pin is properly driven to enable the device.
  • The maximum cable length supported by the MAX13236EETE+ depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters, but this may vary depending on the signal frequency, cable quality, and environmental conditions.
  • To troubleshoot issues with the MAX13236EETE+, start by reviewing the device's datasheet and application notes. Check the power supply, signal connections, and PCB layout for any errors or omissions. Use oscilloscopes or logic analyzers to debug the signal waveforms and protocol communications. If issues persist, contact Analog Devices' technical support for further assistance.
  • The MAX13236EETE+ is a USB-C Power Delivery (PD) controller, and as such, it is primarily designed for USB-C PD applications. However, it can be used in other applications that require high-speed data transmission and power delivery, such as Thunderbolt 3 or DisplayPort Alternate Mode (DP Alt Mode). Consult the datasheet and application notes for more information on using the device in non-standard applications.
