MAX13236EETE+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX13236EETE+T - RS232 TRANSCEIVER, 250KBPS, -40TO85DEG C

Download MAX13236EETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

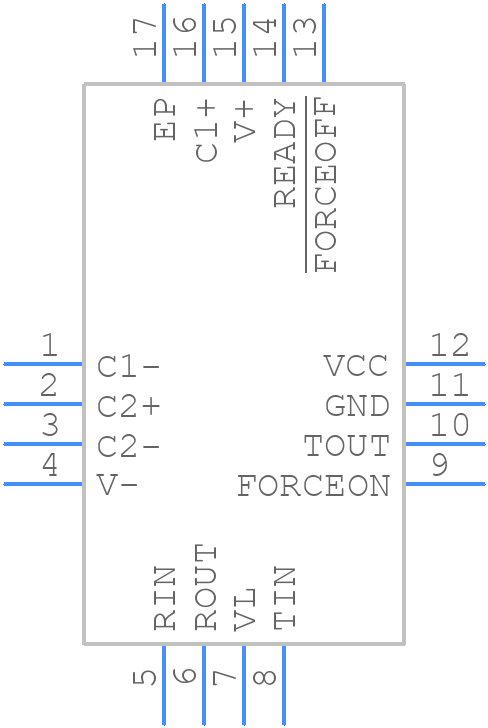

MAX13236EETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13236EETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655-2-2020-1
click to zoom
3D Models
MAX13236EETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1655-2-2020-1
click to zoom

MAX13236EETE+T Details

  • Manufacturer Part Number:

    MAX13236EETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    QCCN, LCC16,.2SQ,32

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0008 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX13236EETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13236EETE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure proper powering and bypassing of the MAX13236EETE+T, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and place it as close to the device as possible. Additionally, use a 1uF to 10uF capacitor between the AVCC and AGND pins for analog power supply decoupling.
  • The MAX13236EETE+T has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
  • Yes, the MAX13236EETE+T is designed to withstand high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To troubleshoot common issues with the MAX13236EETE+T, start by verifying the input voltage, output voltage, and load conditions. Check for proper PCB layout, decoupling, and bypassing. Use an oscilloscope to monitor the output voltage and look for signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
