MAX13237EETE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX13237EETE+ - Transceiver, RS232, 3V-5.5V supply, 1 Driver, TQFN-16

Download MAX13237EETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

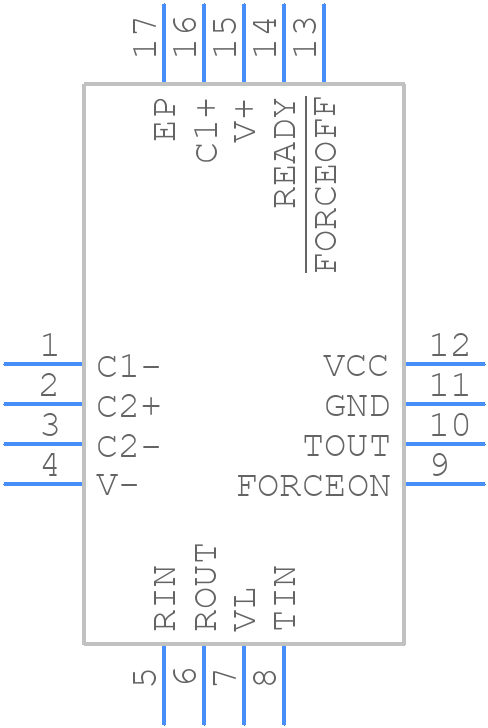

MAX13237EETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13237EETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655-2-2020
click to zoom
3D Models
MAX13237EETE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1655-2-2020
click to zoom

MAX13237EETE+ Details

  • Manufacturer Part Number:

    MAX13237EETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    ROHS COMPLIANT, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0008 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX13237EETE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX13237EETE+ can be found in the MAX13237EETE+ Evaluation Kit documentation, which includes a detailed layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the performance of the MAX13237EETE+, it's essential to follow the recommended layout and component selection guidelines in the datasheet. Additionally, consider the specific requirements of your application, such as input voltage range, output current, and noise tolerance. You may also want to consult with Analog Devices' application engineers or use their online simulation tools to fine-tune your design.
  • The MAX13237EETE+ has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature (TJ) should not exceed 150°C.
  • Yes, the MAX13237EETE+ is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs, and is manufactured using a high-reliability process. However, it's essential to consult with Analog Devices' application engineers to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the MAX13237EETE+, start by reviewing the datasheet and application notes to ensure that the device is properly configured and laid out. Use oscilloscopes and other diagnostic tools to identify the source of the issue. If you're still having trouble, consult with Analog Devices' application engineers or seek assistance from a qualified design expert.
