MAX13237EETE+T - Analog Devices

Description: RS-232 Interface IC 3Mbps RS-232 Transceivers with Low-Voltage Interface

Download MAX13237EETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

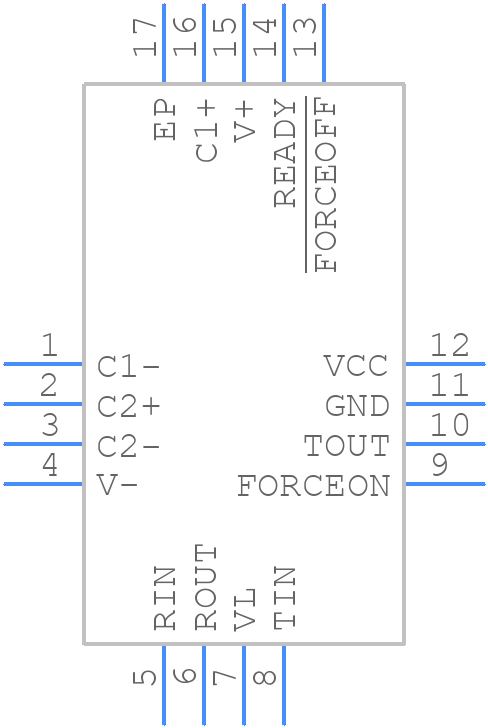

Symbol
MAX13237EETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13237EETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+3_2020
click to zoom
3D Models
MAX13237EETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1655+3_2020
click to zoom

MAX13237EETE+T Details

  • Manufacturer Part Number:

    MAX13237EETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    HVQCCN, LCC16,.2SQ,32

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0008 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX13237EETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13237EETE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The maximum cable length supported by the MAX13237EETE+T depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters for RS-485 and 1000 meters for RS-422. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • To troubleshoot common issues with the MAX13237EETE+T, start by checking the power supply and decoupling, ensuring that the device is properly powered and decoupled. Next, verify the signal integrity and transmission line impedance, and check for any noise or interference on the signal lines. Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the MAX13237EETE+T can be used in harsh industrial environments, but precautions should be taken to ensure reliable operation. The device is rated for operation in temperatures ranging from -40°C to +85°C, but it's recommended to consider the operating temperature range and potential thermal stress when designing the system. Additionally, consider using conformal coating, potting, or other environmental protection methods to protect the device from moisture, vibration, and other environmental factors.
