MAX13253ATB+T - Analog Devices

Description: Gate Drivers Transformer Driver for Isolated Supplies

Download MAX13253ATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

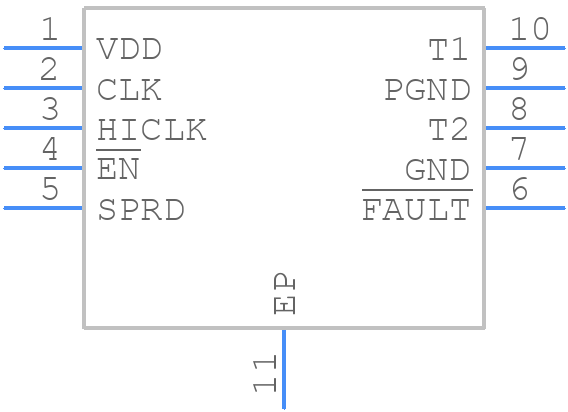

MAX13253ATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13253ATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10 TDFN 21-0137
click to zoom
3D Models
MAX13253ATB+T - Analog Devices - 3D model - Small Outline No-lead - 10 TDFN 21-0137
click to zoom

MAX13253ATB+T Details

  • Manufacturer Part Number:

    MAX13253ATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    ROHS COMPLIANT, TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2013-03-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX13253ATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13253ATB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and load.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the EN pin is pulled high to enable the device, and that the FAULT pin is properly connected to a pull-up resistor and a capacitor to filter out noise.
  • The MAX13253ATB+T can deliver up to 3A of output current. In the event of an overcurrent condition, the device has a built-in overcurrent protection (OCP) feature that limits the output current to prevent damage to the device and the load. The OCP threshold can be adjusted using an external resistor.
  • The MAX13253ATB+T has a built-in input voltage transient protector that can withstand input voltage transients up to 40V. Additionally, the device has a low-pass filter on the input voltage pin to filter out high-frequency noise. However, it's still recommended to use external filtering components, such as capacitors and resistors, to further reduce noise and ensure reliable operation.
  • The MAX13253ATB+T has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance. Additionally, monitor the device's temperature using the THERM pin and take corrective action if necessary.
