MAX132EWG+T - Analog Devices

Description: ±18-Bit ADC with Serial Interface

Download MAX132EWG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

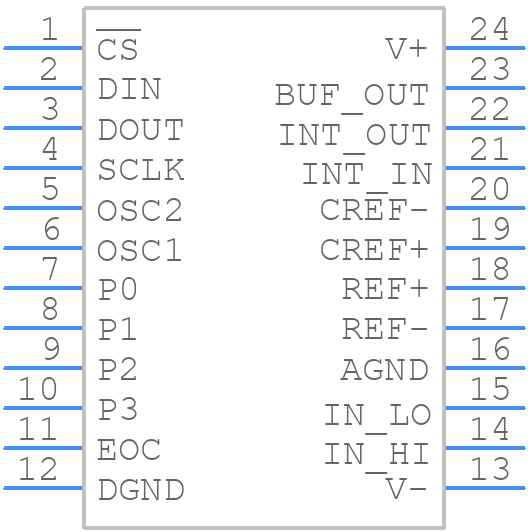

MAX132EWG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX132EWG+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_W
click to zoom
3D Models
MAX132EWG+T - Analog Devices - 3D model - Small Outline Packages - SOIC_W
click to zoom

MAX132EWG+T Details

  • Manufacturer Part Number:

    MAX132EWG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-SOIC_W-300_MIL

  • Package Description:

    SOP, SOP24,.4

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-SOIC_W-300_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    6 V

  • Analog Input Voltage-Min:

    -9 V

  • Converter Type:

    ADC, MULTI-SLOPE

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.006%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.125 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX132EWG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX132EWG+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and crosstalk.
  • The MAX132EWG+T requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying any input signals. There are no specific power sequencing requirements, but it's recommended to power the device after the input signals are stable.
  • The MAX132EWG+T can handle input voltages up to 6V without damage, but it's recommended to limit the input voltage to the specified operating range of 0V to 5.5V to ensure optimal performance and accuracy.
  • To troubleshoot issues with the MAX132EWG+T, start by verifying the power supply and input signals. Check for any noise or oscillations on the input signals, and ensure that the device is properly grounded. Use an oscilloscope to measure the output voltage and verify that it's within the specified range. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX132EWG+T is rated for operation up to 125°C, but its performance and accuracy may degrade at high temperatures. It's recommended to derate the device's performance and accuracy at high temperatures, and to consult the datasheet and application notes for further guidance.
