MAX13412EESA+T - Analog Devices

Description: RS-485 Interface IC RS-485 Transceiver with Integrated Low-Dropout Regulator andAutoDirection Control

Download MAX13412EESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

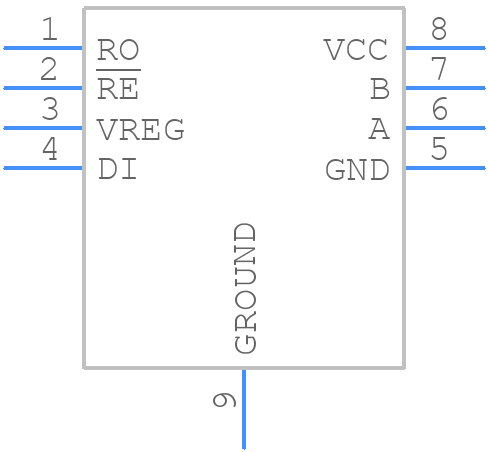

MAX13412EESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13412EESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E+14
click to zoom
3D Models
MAX13412EESA+T - Analog Devices - 3D model - Small Outline Packages - S8E+14
click to zoom

MAX13412EESA+T Details

  • Manufacturer Part Number:

    MAX13412EESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.001 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    10 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX13412EESA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13412EESA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
  • The MAX13412EESA+T requires a single 3.3V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the analog and digital supplies are stable.
  • The MAX13412EESA+T can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality.
  • The MAX13412EESA+T is a universal asynchronous receiver-transmitter (UART) that can be configured for different communication protocols using external resistors and capacitors. The specific configuration depends on the protocol requirements, such as data rate, parity, and stop bits.
  • The MAX13412EESA+T has built-in ESD protection up to ±15kV human-body model (HBM) and ±8kV IEC 61000-4-2 contact discharge. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage conditions.
