MAX13450EAUD+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX13450EAUD+ - RS-485 TRANSCEIVER, 20MBPS, TSSOP-14

Download MAX13450EAUD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

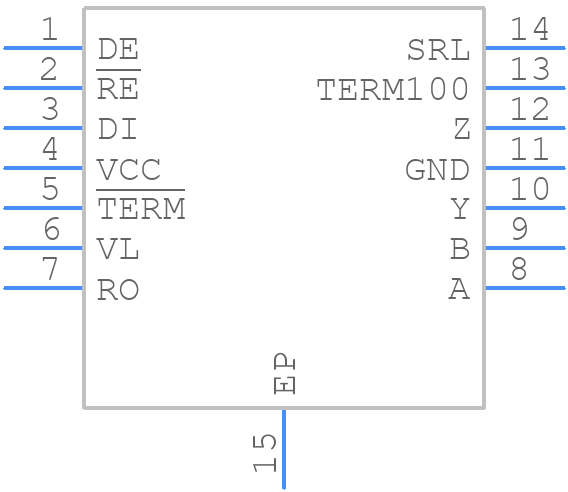

Symbol
MAX13450EAUD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13450EAUD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0108
click to zoom
3D Models
MAX13450EAUD+ - Analog Devices - 3D model - Small Outline Packages - 21-0108
click to zoom

MAX13450EAUD+ Details

  • Manufacturer Part Number:

    MAX13450EAUD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    ROHS COMPLIANT, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-05-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    THERMAL SHUTDOWN

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    4.4 mm

MAX13450EAUD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13450EAUD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the battery and the load.
  • To optimize the performance of the MAX13450EAUD+ in a noisy environment, it's recommended to use a low-pass filter on the input voltage, add a capacitor between the VCC and GND pins, and use a shielded cable for the communication interface. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The MAX13450EAUD+ has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX13450EAUD+, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the device is properly configured and that the communication interface is functioning correctly. Use an oscilloscope to check the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the MAX13450EAUD+ is suitable for use in battery-powered devices due to its low quiescent current and high efficiency. However, it's essential to consider the device's power consumption and the battery's capacity to ensure that the system meets the required operating life.
