MAX13451EAUD+T - Analog Devices

Description: RS-485 Interface IC RS-485 Transceivers with Integrated 100OHM/120OHM Termination Resistors

Download MAX13451EAUD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

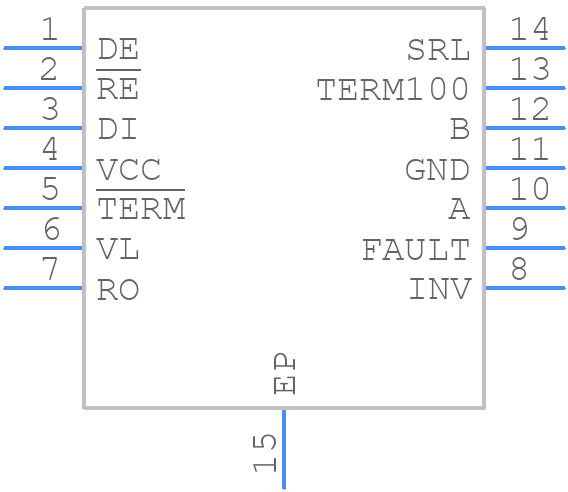

MAX13451EAUD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13451EAUD+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U14E+3
click to zoom
3D Models
MAX13451EAUD+T - Analog Devices - 3D model - Small Outline Packages - U14E+3
click to zoom

MAX13451EAUD+T Details

  • Manufacturer Part Number:

    MAX13451EAUD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-05-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    4.4 mm

MAX13451EAUD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13451EAUD+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power source and use a low-ESR capacitor for the VCC pin.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by the digital supply voltage (DVCC). Also, ensure that the EN pin is high during power-up and that the device is properly configured through the SPI interface.
  • The MAX13451EAUD+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • To troubleshoot issues with the MAX13451EAUD+T, start by verifying the power supply and clock signals, then check the device configuration and register settings. Use a logic analyzer or oscilloscope to monitor the device's output signals and verify that they match the expected behavior. Consult the datasheet and application notes for guidance on specific troubleshooting steps.
  • Yes, the MAX13451EAUD+T is designed to meet the requirements of various industry standards, including AEC-Q100 for automotive applications and IEC 60601-1 for medical devices. However, it's essential to consult the datasheet and relevant application notes to ensure that the device is used in a way that meets the specific requirements of the target standard.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13451EAUD+T Overview

Use the download button to access the MAX13451EAUD+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
